Removal and replacement procedures 4–41

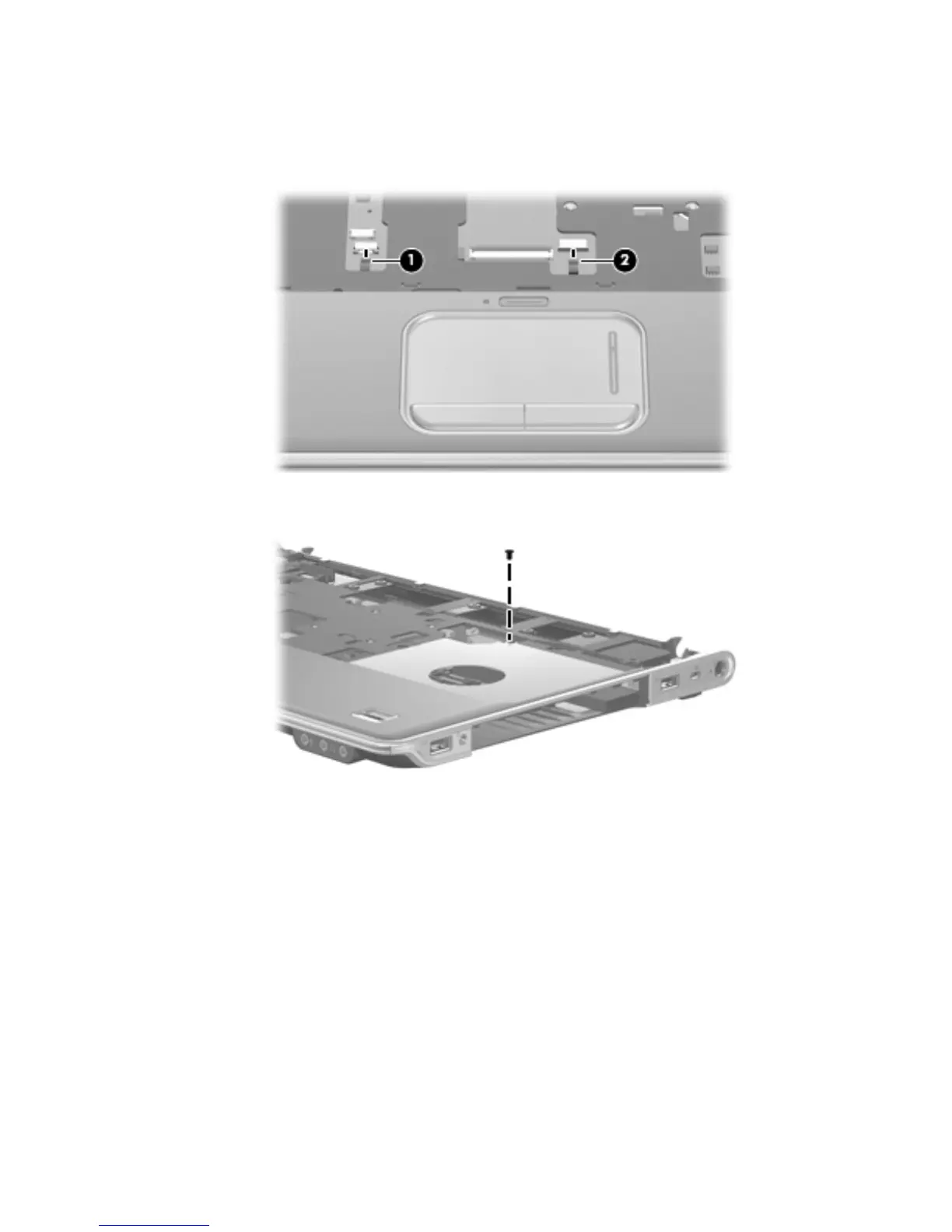

4. Turn the computer right-side up, with the front toward you.
5. Disconnect the following cables from the system board:
1 TouchPad board cable
2 TouchPad on/off button board cable
6. Remove the Phillips PM2.0×4.0 screw that secures the top cover to the base enclosure.
