Removal and replacement procedures 4–42

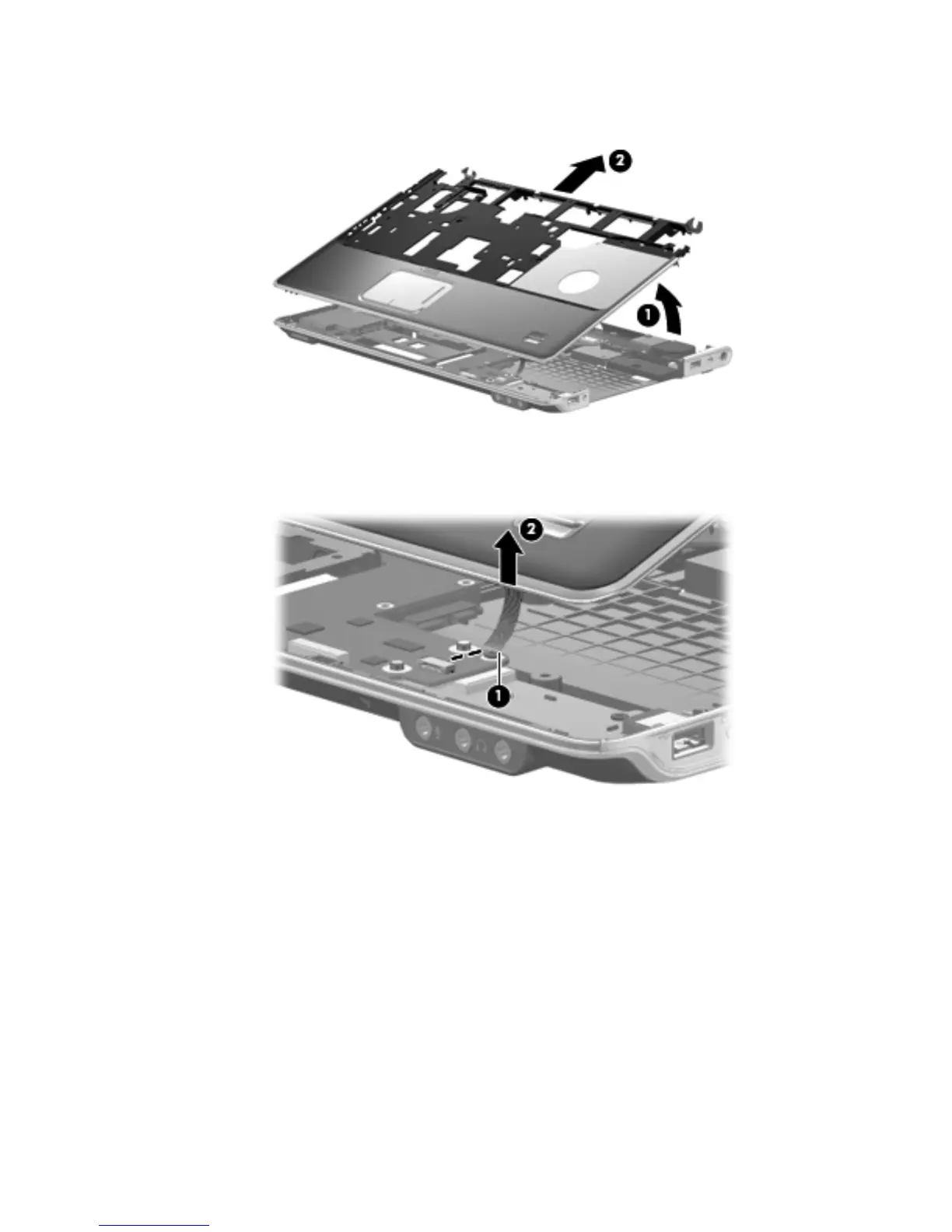

7. Lift the rear edge 1 of the top cover until it rests at an angle.
8. Slide the top cover 2 back until the fingerprint reader board cable is accessible.
9. Disconnect the fingerprint reader board cable 1 from the LIF connector on the system board.
10. Remove the top cover 2.
Reverse this procedure to install the top cover.
