Removal and replacement procedures 4–46

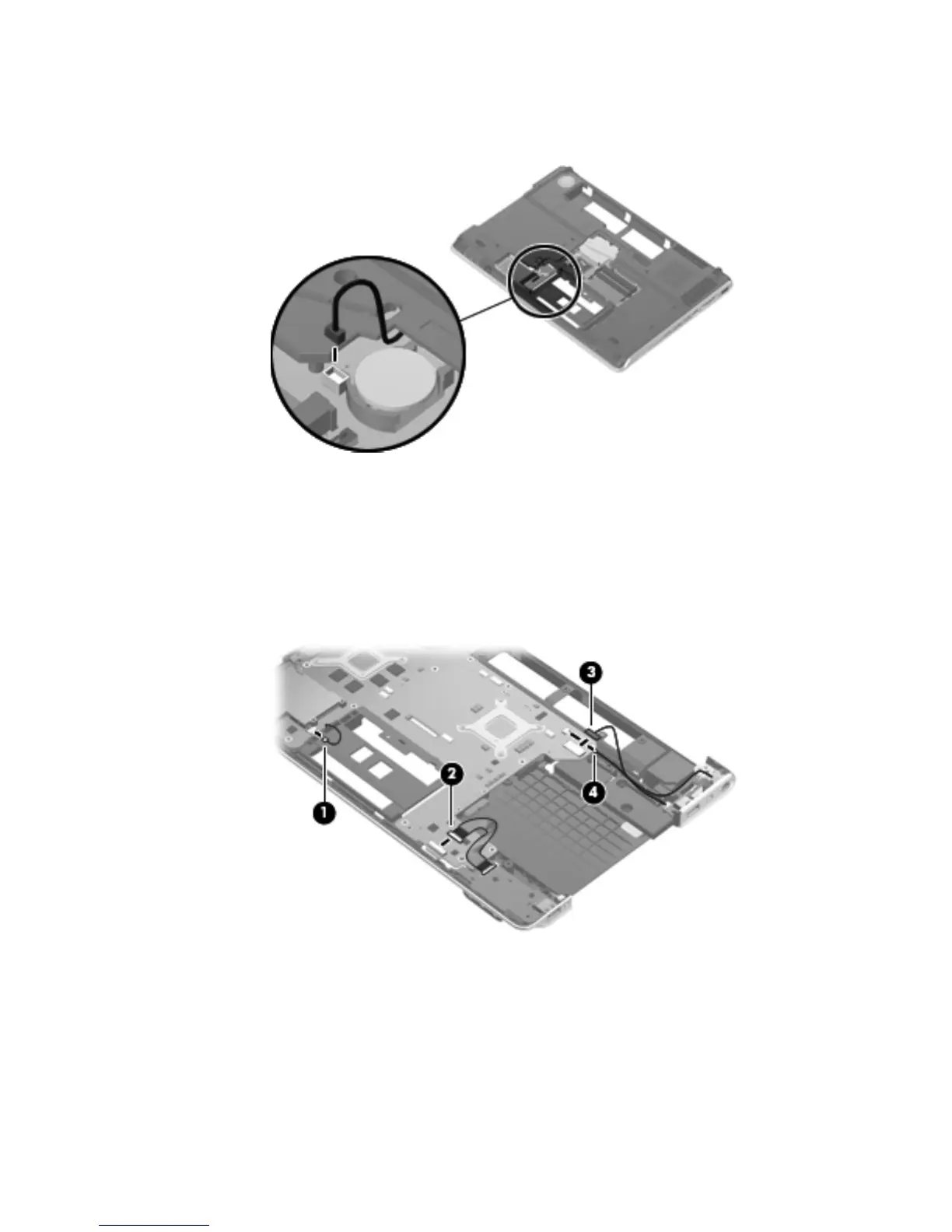

Remove the system board:
1. Turn the computer upside down, with the front toward you.
2. Disconnect the subwoofer cable from the system board.
3. Turn the computer right-side up, with the front toward you.
4. Disconnect the following cables from the system board:
1 Fan cable
2 Audio/infrared board cable
3 Power connector cable
4 USB board cable
