Removal and replacement procedures 4–47

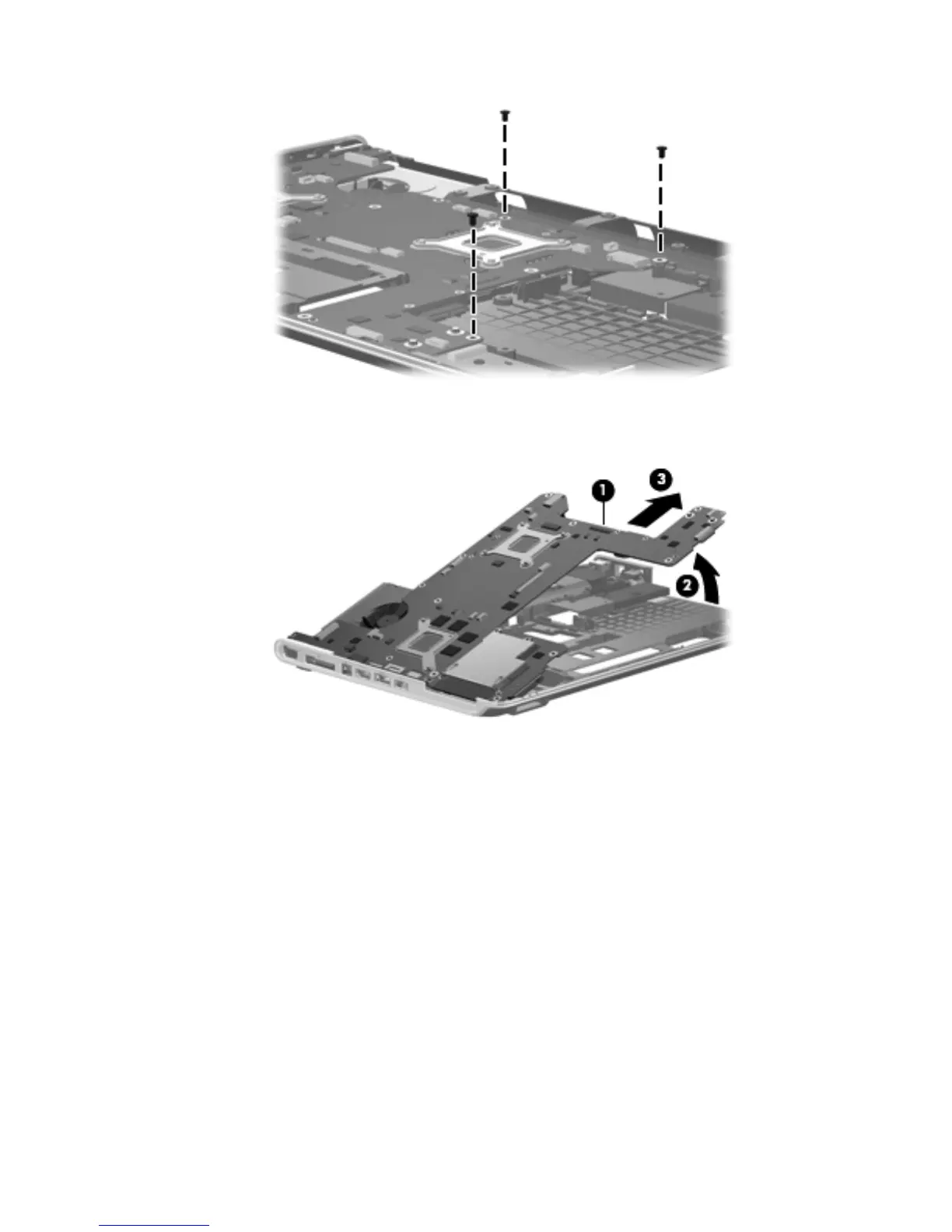

5. Remove the three Phillips PM2.0×4.0 screws that secure the system board to the base enclosure.

6. Use the optical drive connector 1 to lift the right side 2 of the system board until it rests at an angle.

7. Remove the system board 3 by sliding it up and to the right.

Reverse this procedure to install the system board.
