Table 8 Rear panel LED behavior (continued)
StatusDescriptionItem
Flashing blue = System being
managed remotely
Right = iLO link LEDiLO4 LED2
Left = iLO activity LED
Off = No network linkNIC link LED3R
Green = Network link
Off = No network activityNIC activity LED3L
Solid green = Link to network
Flashing green = Network activity
Off = System is off or power supply has
failed.
Power supply 2 LED
(optional on HPE 3100)
4
Solid green = Normal
Off = System is off or power supply has
failed.
Power supply 1 LED5
Solid green = Normal
Storage enclosure LEDs (HPE StoreOnce 5100 System only)

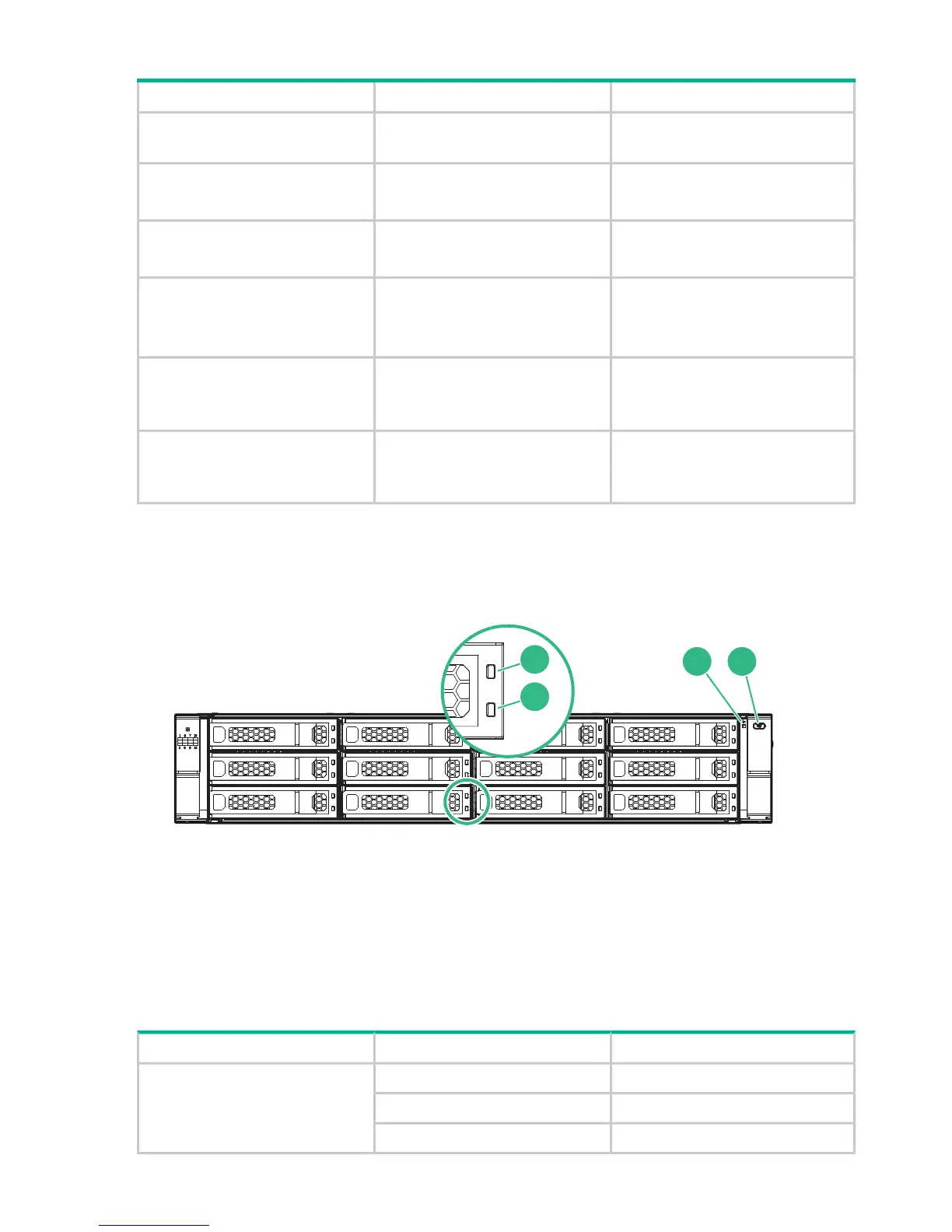

Figure 12 Capacity Upgrade front view
3 4
1
2
2. Disk drive status LED1. Disk drive UID
4. System locate UID3. System status LED
Front panel system status LEDs
Table 9 Front panel system status LEDs
DescriptionDisplay
Indicator
1
Normal operationGreen onSystem status LED
Critical fault.Amber on
Non-critical fault.Amber flashing
26 Identifying problems
