NOTE: For information about replacing RAID cards and internal SAS cabling, refer to Replacing
the RAID controller and components (page 41). For information about DIMM locations see DIMM
locations (page 35).
Motherboard spares part number and System Maintenance switch
The motherboard for the HPE StoreOnce 3100 System, HPE StoreOnce 3500 and 5100 System
is the standard DL360/DL380 Gen9 motherboard, spares part number 775400-001.
See the DL360p Gen 9 Maintenance and Service Guide and DL380p Gen 9 Maintenance and
Service Guide for more information about replacing the motherboard.
IMPORTANT: There is a default boot mode setting on the system maintenance switch on the
motherboard. This should be set to UEFI and not be Legacy mode enabled (even though the
BIOS setting will be Legacy Mode).
The following drawing shows a ProLiant DL380 motherboard; the location of the System
Maintenance switch is the same for the ProLiant DL360 motherboard. The default value for all
positions on the System Maintenance switch is OFF; this is correct for HPE StoreOnce systems.

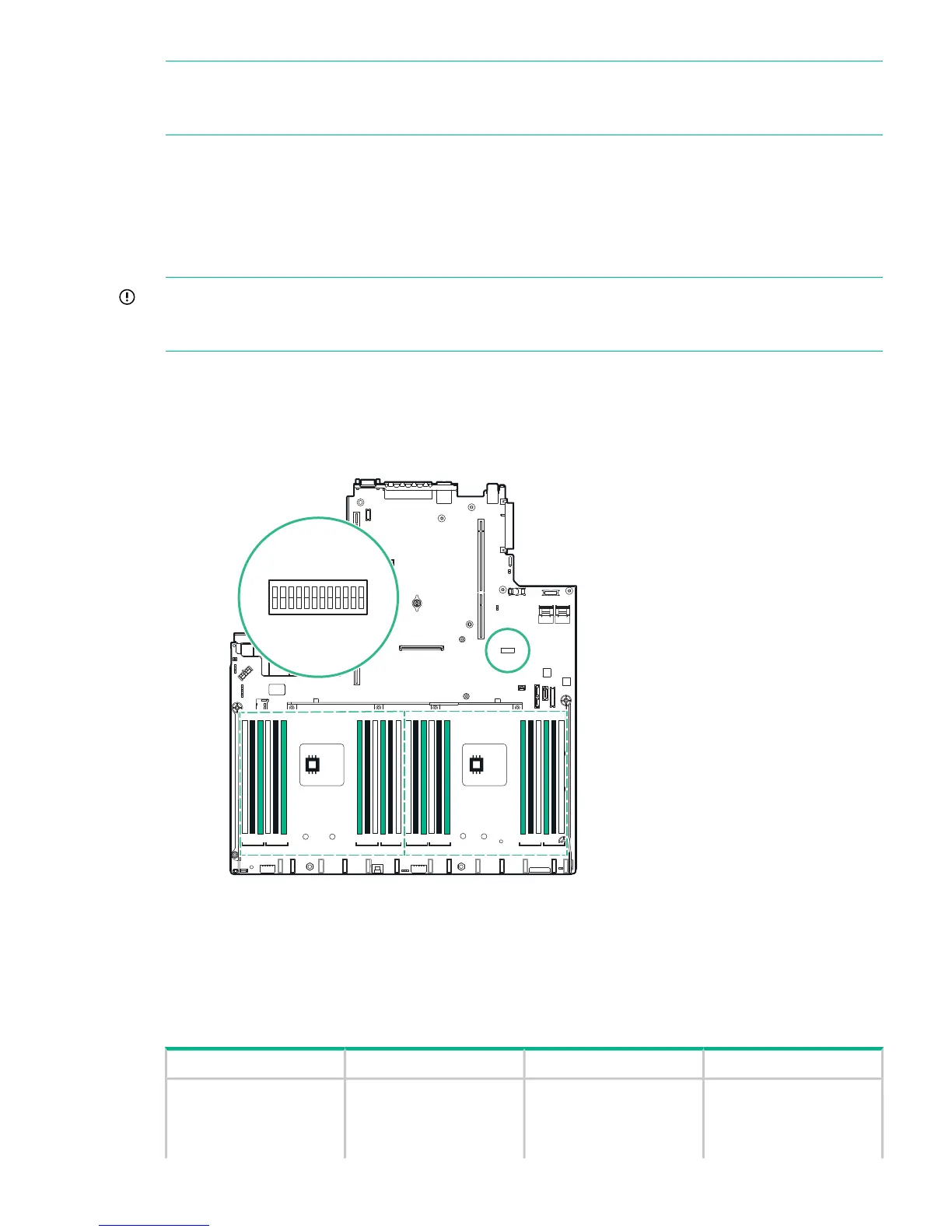

Figure 14 Location of the system maintenance switch
DIMM locations
DIMM slots are numbered sequentially (1 to 12) for each processor. The supported AMP modes
use the letter assignments for population guidelines.
Table 14 DIMM slot locations
SlotsDIMMProcessorModel
Ch1, slot 12, ADIMM 11HPE StoreOnce 5100
System
Ch2, slot 9, BDIMM 2
Ch3, slot 1, CDIMM 3
Motherboard spares part number and System Maintenance switch 35
