HP HPE StoreOnce 5100 Series

HPE StoreOnce 3500 Series

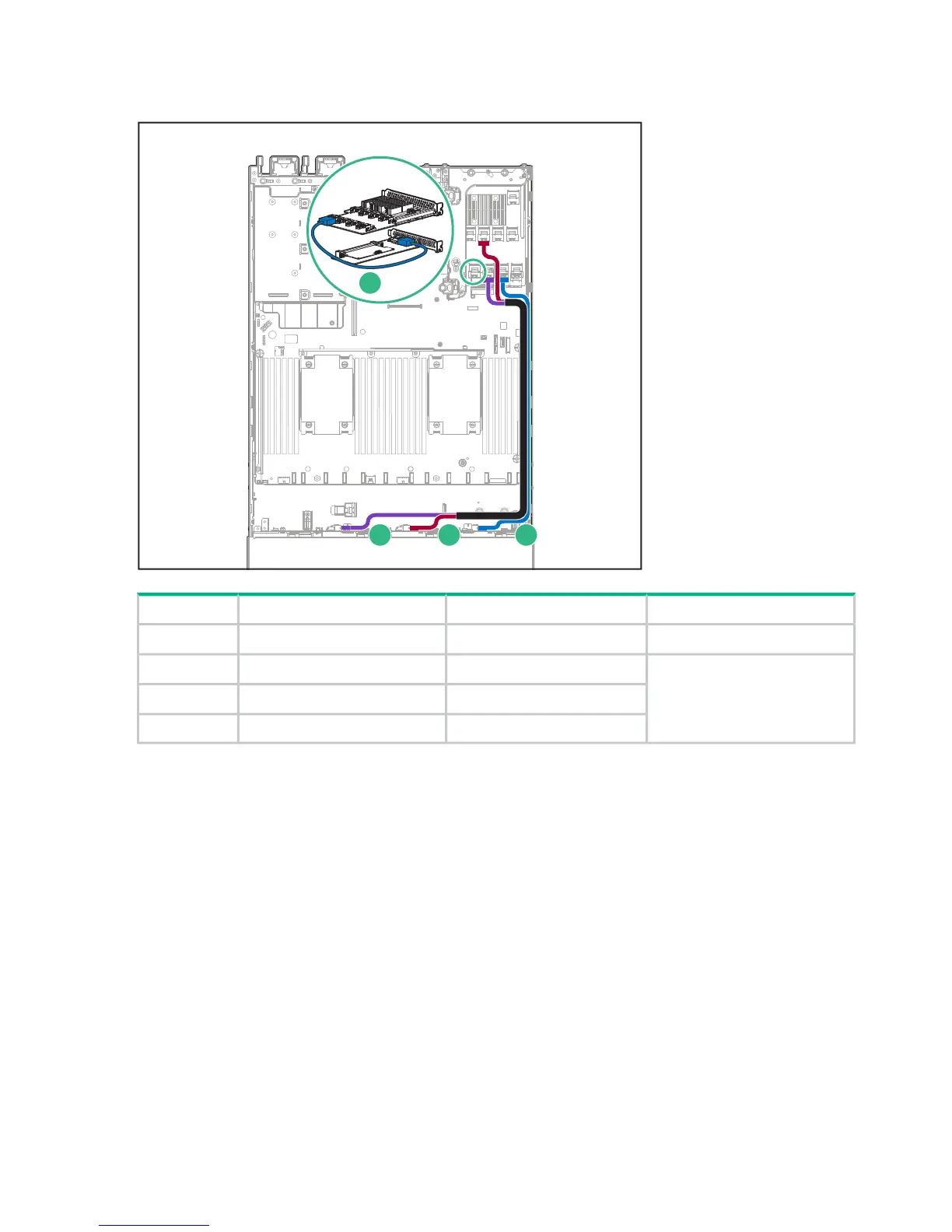

Figure 19 Internal SAS cabling 3500 Series
1
2 3 4
CableToFromItem
729357–001Port 1, SAS expander (slot 2)Port 1, RAID controller (slot 3)1
784627–001 (kit for all three SAS
expander to backplane cables)
Port 1, backplanePort 5, SAS expander2
Port 2, backplanePort 4, SAS expander3
Port 3, backplanePort 3, SAS expander4
42 Replacing the p1224 RAID controller and components
