2. Remove the front bezel from the HPE StoreOnce System. Turn the key (1) to unlock the
security bezel and pull it out (2) and away (3) from the front of the appliance, using the handle
(4). (The example shows an HPE StoreOnce 5100 System.

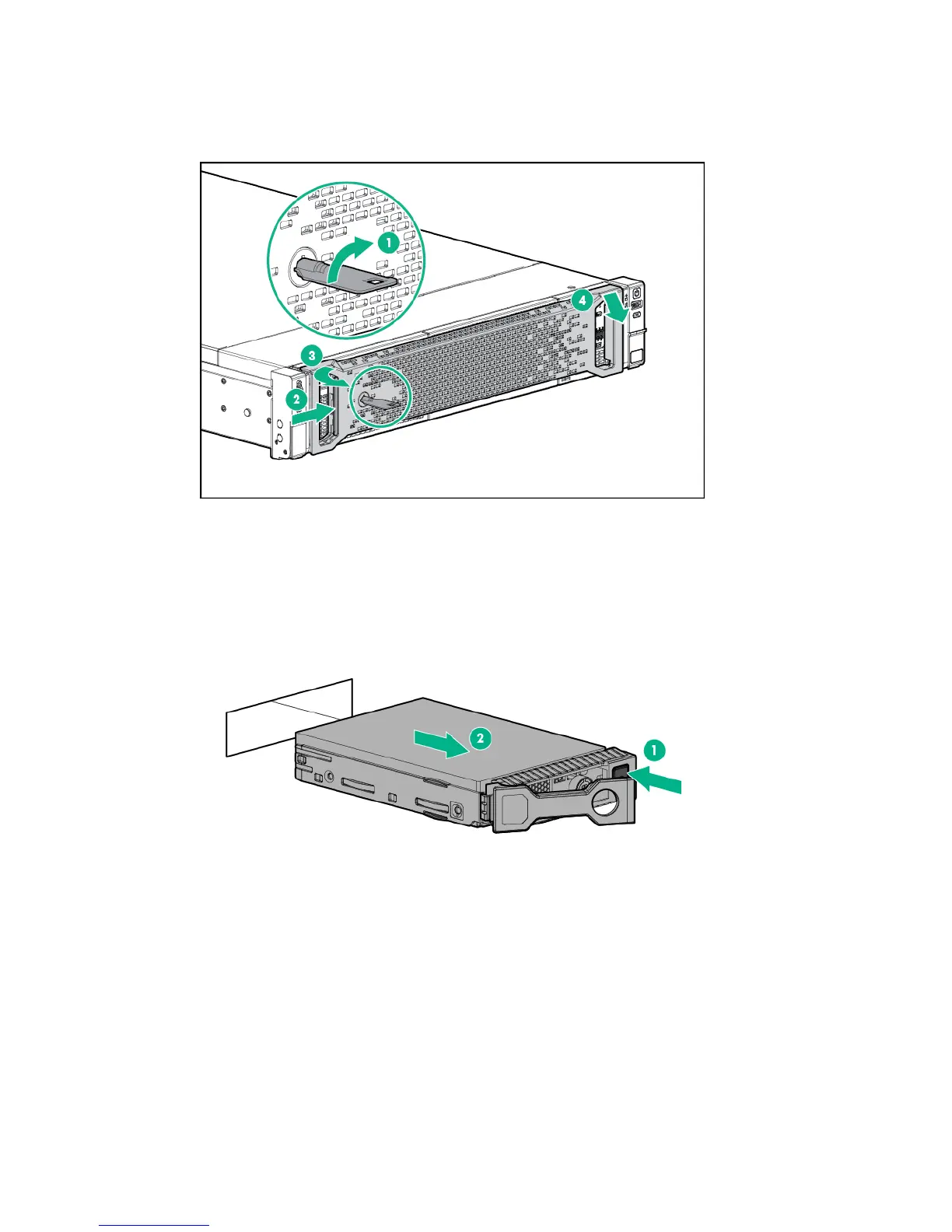

Figure 26 Removing the front bezel
3. Remove the disk.
• Press the hard disk carrier button (1) to release the ejector lever.
• Pull out the disk carrier handle and slide the hard drive assembly (2) out of the drive
bay. Be sure to support the drive when pulling it out of the cage.
Figure 27 Removing the hard drive
4. Replace the failed disk with the new disk.
Push the hard drive assembly (1) into the drive bay until it stops and press the HDD carrier
latch (2) inward until it clicks.
Replacing a hot-plug hard disk 51
