HP M24FD User Manual

6

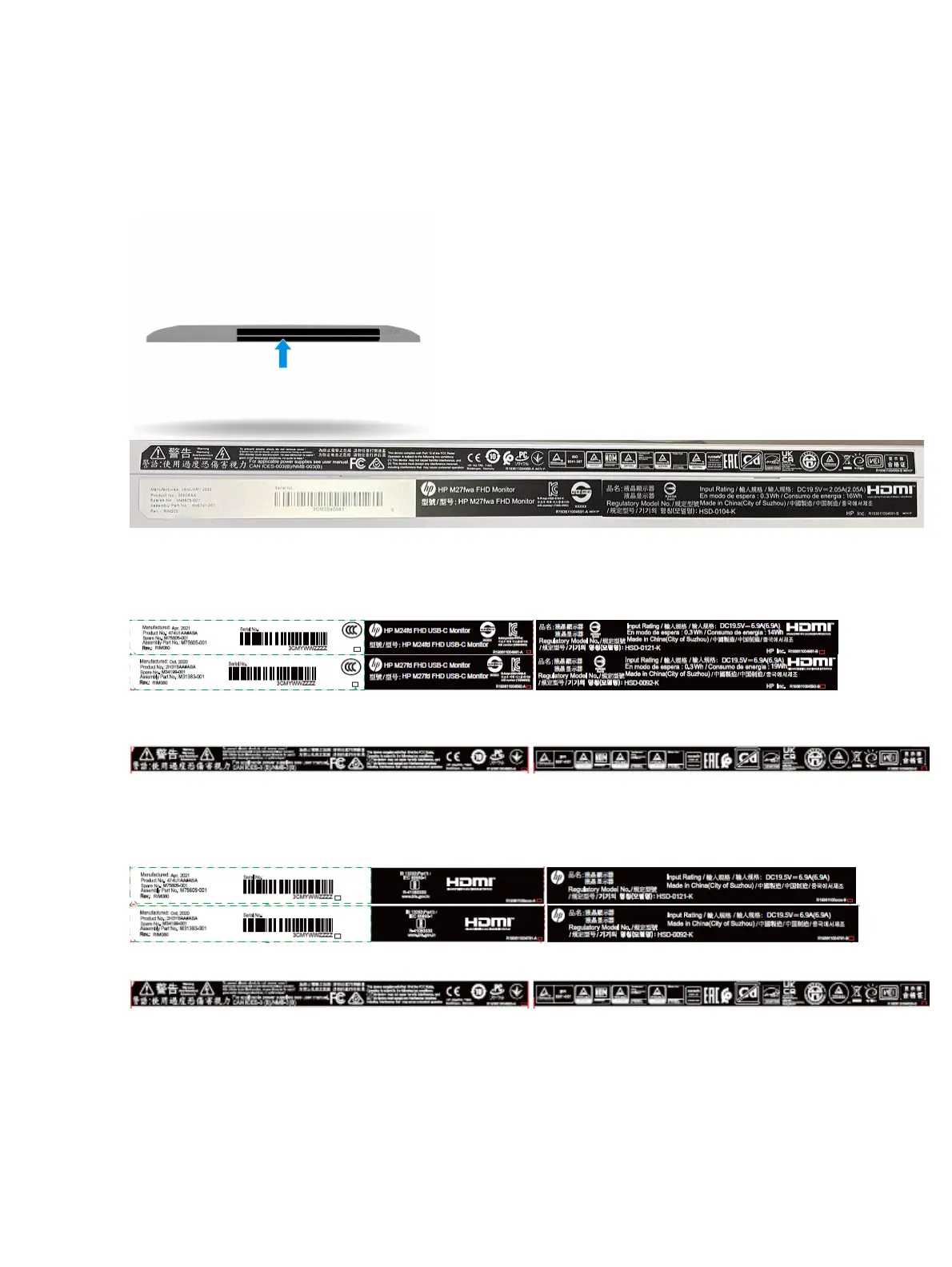

Locating the serial number and product number
The SPEC label (1) and BaRear Coverode label (2) are located on the rear of the monitor. The serial number and
product number are located on a Safety label. You may need these numbers when contacting HP about the
monitor model.
For worldwide models (except India):
Barcode label
Spec label
For India:
Bar code label
Spec label

HP M24FD Specifications

General

Color gamut	99 %
Pixel pitch	0.275 x 0.275 mm
Screen shape	Flat
Pixel density	93 ppi
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Contrast ratio (typical)	1000:1
Display number of colors	-
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	117 W
Power consumption (standby)	0.5 W
Power consumption (typical)	27 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, HDMI, USB Type-C
HDMI version	1.4
USB Type-A downstream ports quantity	2
Package depth	121 mm
Package width	610 mm
Package height	399 mm
Package weight	5100 g
Tilt angle range	-5 - 25 °
Product color	Silver
Market positioning	Home
Depth	34 mm
Height	315.6 mm

Weight and Dimensions

Depth (with stand)	39.68 mm
Width (with stand)	53.58 mm
Height (with stand)	17.72 mm
Weight (with stand)	2600 g
Depth (without stand)	3.4 mm
Width (without stand)	535.8 mm
Height (without stand)	31.56 mm
