HP M24fw User Manual

6

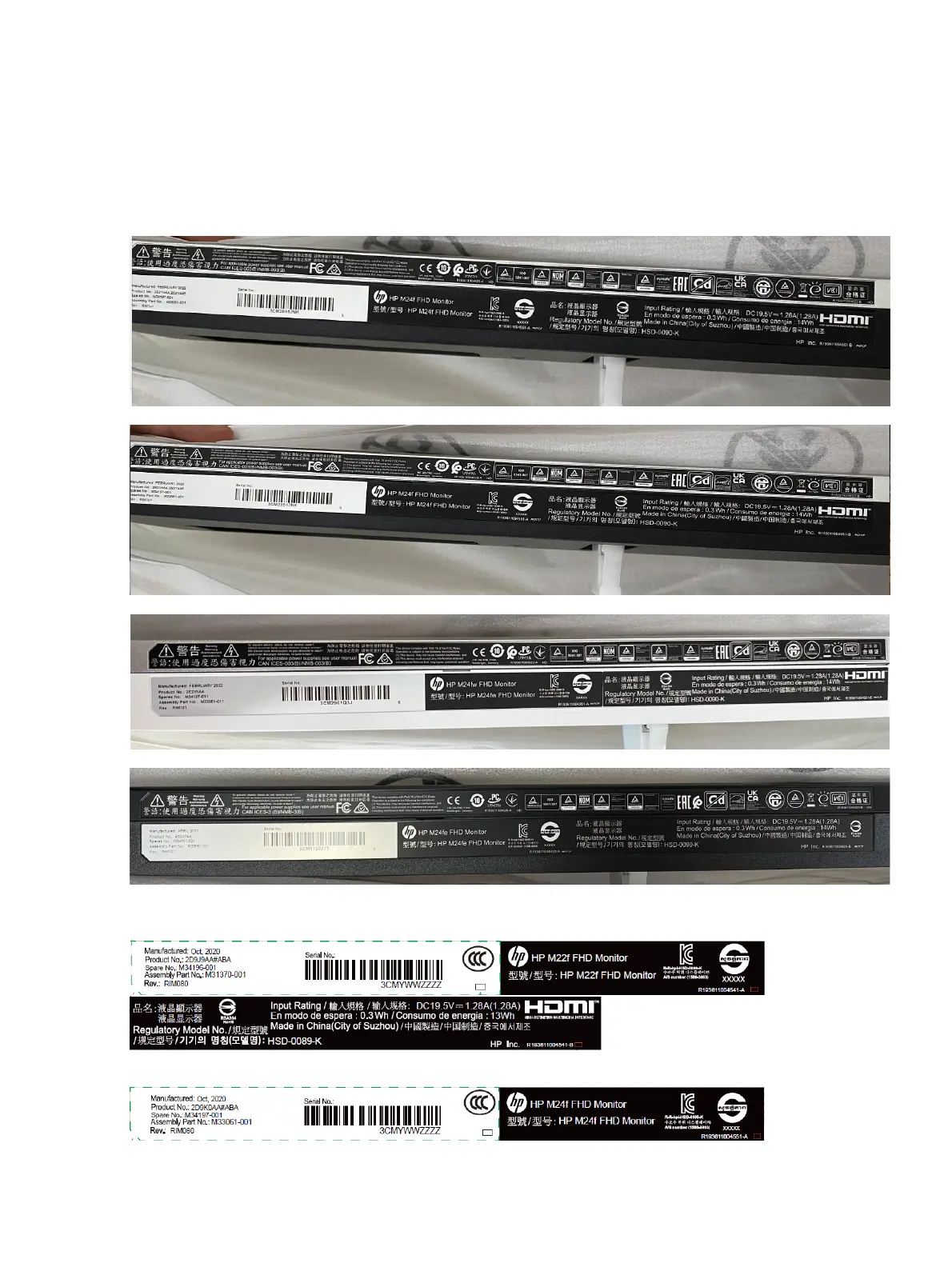

Locating the serial number and product number
Depending on the product, the serial number and product number are located on a label on the rear of the
monitor or on a label under the front bezel of the monitor head. You might need these numbers when contacting
HP for support.
M22f
M24f
M24fw
M24fe
For worldwide models (except India):
Barcode label—M22f
Barcode label—M24f

HP M24fw Specifications

General

Color gamut	99 %
Screen shape	Flat
Pixel density	93 ppi
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Contrast ratio (typical)	1000:1
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 720 x 400, 1280 x 1024 (SXGA), 1280 x 800, 800 x 600 (SVGA), 1440 x 900, 1024 x 768 (XGA), 1600 x 900, 640 x 480 (VGA), 1680 x 1050 (WSXGA+)
HDMI version	1.4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	20 W
Power consumption (standby)	0.5 W
Power consumption (typical)	14.3 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	121 mm
Package width	610 mm
Package height	399 mm
Package weight	4700 g
Tilt angle range	-5 - 25 °
Product color	Silver
Market positioning	Business
HP segment	Home

Weight and Dimensions

Depth (with stand)	177.2 mm
Width (with stand)	535.8 mm
Height (with stand)	396.8 mm
Weight (with stand)	2500 g
Depth (without stand)	34 mm
Height (without stand)	315.6 mm
