HP M24fw User Manual

20
Connector repair
This procedure includes HDMI, DisplayPort and audio connectors.

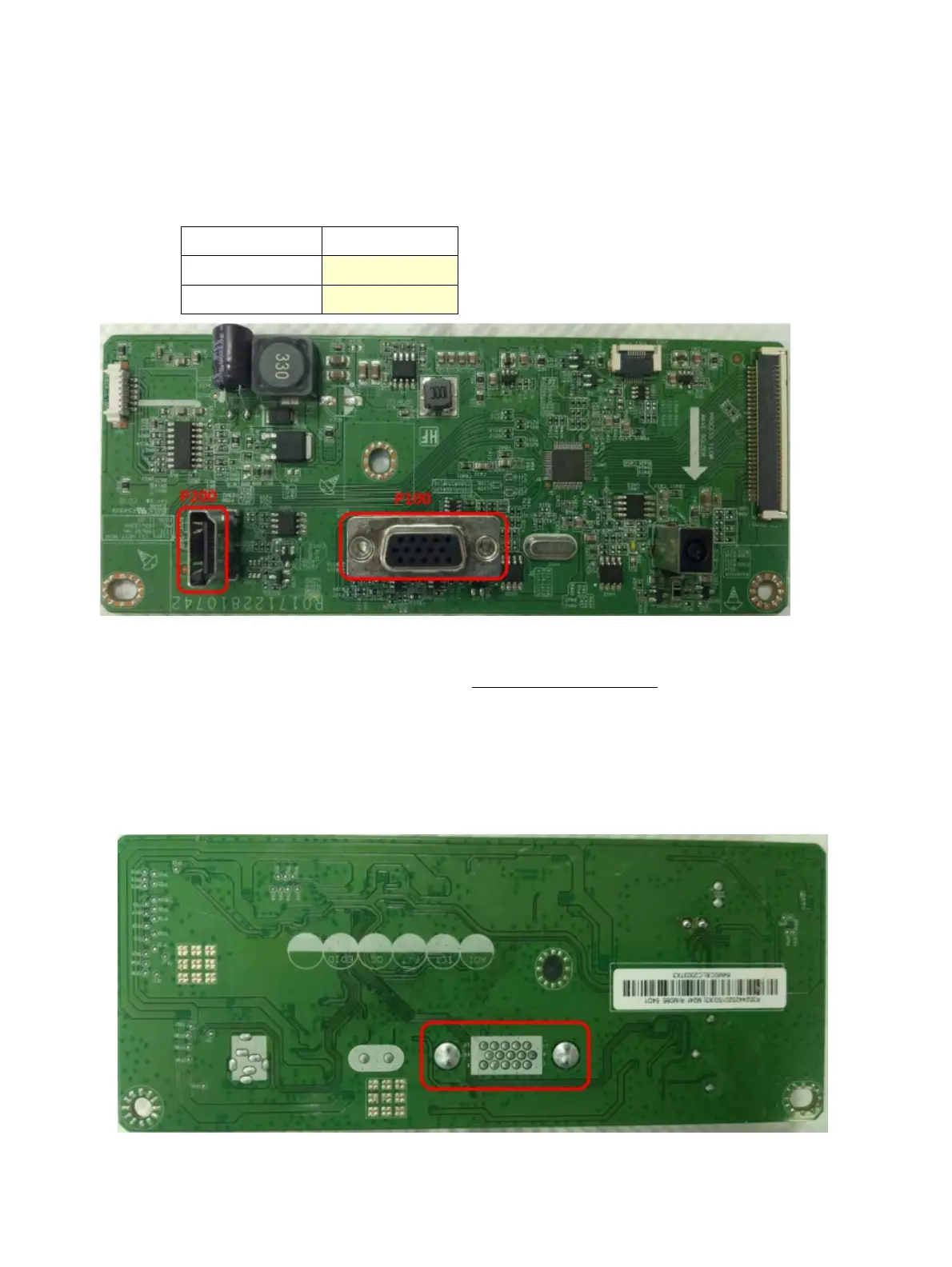

The connectors are on the main board (board part number 5E.49101.011).
The connectors identifiers are as follows:
Connector
Location
VGA
P100
HDMI
P200
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 14
.
VGA P100
Repair the VGA connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the P100 out of the through holes.
2) Lift the P100 connector from the PCB..

HP M24fw Specifications

General

Color gamut	99 %
Screen shape	Flat
Pixel density	93 ppi
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Contrast ratio (typical)	1000:1
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 720 x 400, 1280 x 1024 (SXGA), 1280 x 800, 800 x 600 (SVGA), 1440 x 900, 1024 x 768 (XGA), 1600 x 900, 640 x 480 (VGA), 1680 x 1050 (WSXGA+)
HDMI version	1.4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	20 W
Power consumption (standby)	0.5 W
Power consumption (typical)	14.3 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	121 mm
Package width	610 mm
Package height	399 mm
Package weight	4700 g
Tilt angle range	-5 - 25 °
Product color	Silver
Market positioning	Business
HP segment	Home

Weight and Dimensions

Depth (with stand)	177.2 mm
Width (with stand)	535.8 mm
Height (with stand)	396.8 mm
Weight (with stand)	2500 g
Depth (without stand)	34 mm
Height (without stand)	315.6 mm
