xxiv
To connect a USB cable:
3. Connect the USB port to the PC.
4. Connect the other end to the USB console port of the router.

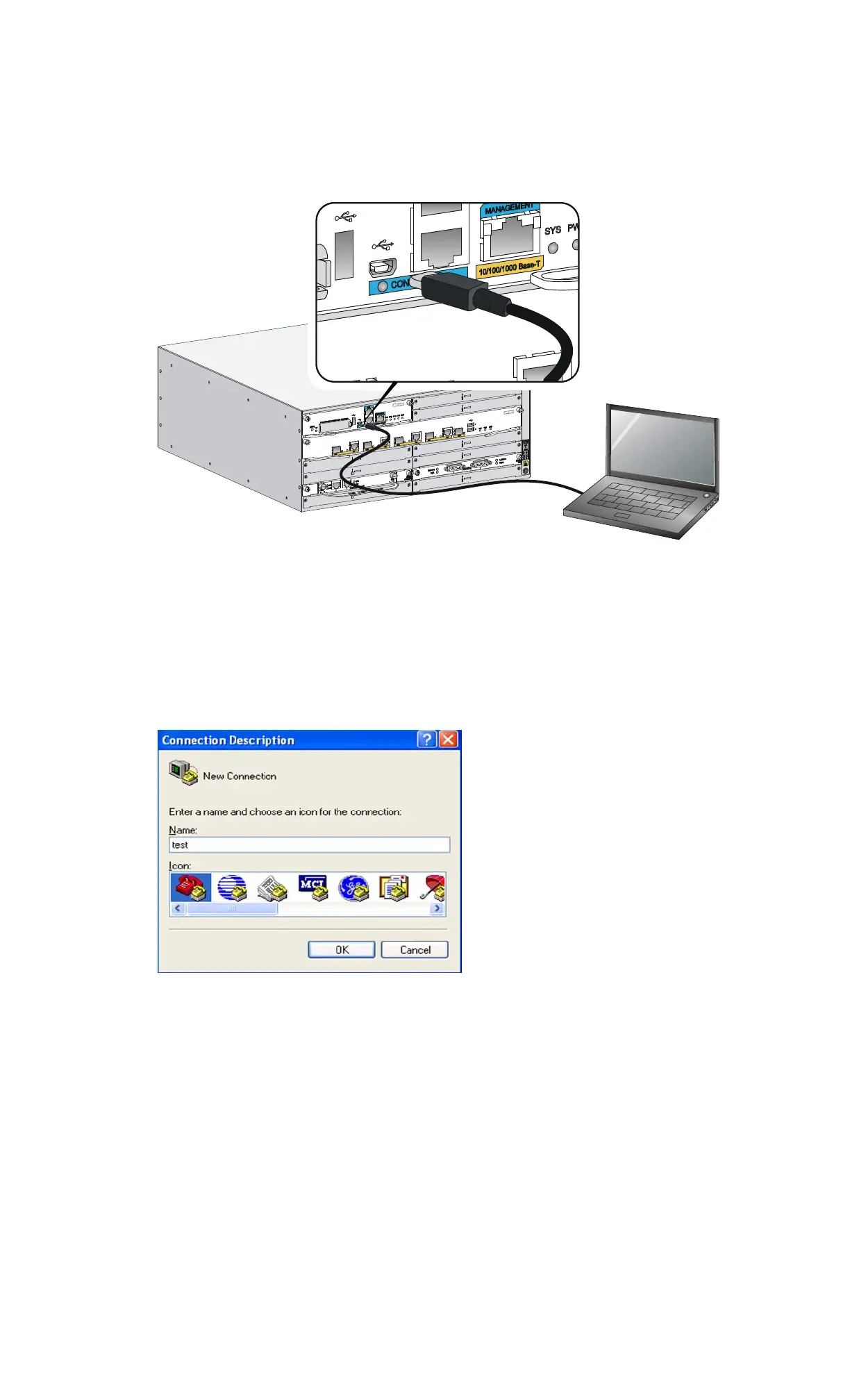

Figure 30 Connecting the USB cable
Setting terminal parameters
This section uses a PC with Windows XP as an example.
To set terminal parameters:
1. Select Start > All Programs > Accessories > Communications > HyperTerminal.
The Connection Description dialog box appears.
Figure 31 Connection description
2. Select the serial port to be used from the Connect using list, and click OK.
