PoE power module

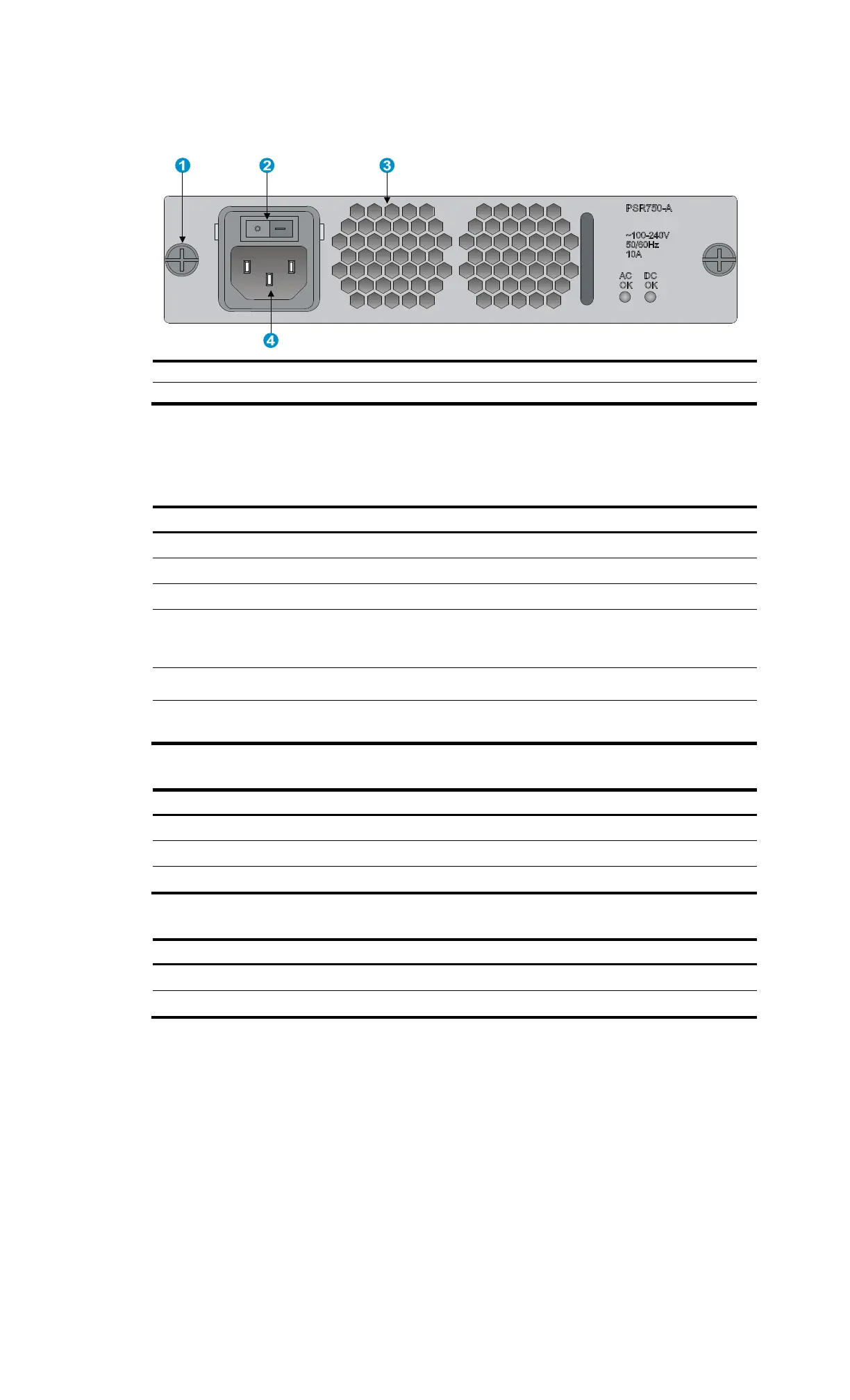

Figure 62 PoE power module
(1) Captive screw
(2)
Power switch
(3)
ir outlet vent (4)
Power receptacle
Technical specifications
Table 5 Technical specifications
Item MSR4060
MSR4080
MPU slot 2
SPU slot 1
HMIM slot 6 8
Dimensions (H × W × D),
excluding rubber feet and
mounting brackets
175.1 × 440 × 480 mm (6.89 ×
17.32 × 18.90 in)
219.5 × 440 × 480 mm (8.64 ×
17.32 × 18.90 in)
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating humidity
(noncondensing)
5% to 90%
Table 6 AC power module specifications
Item S
ecification
Model PSR300-12A1
Rated input voltage range 100 VAC to 240 VAC @ 50 Hz or 60 Hz
Rated power 300 W
Table 7 DC power module specifications
Item S
ecification
Model PSR300-12D2
Rated input voltage range –48 VDC to –60 VDC
