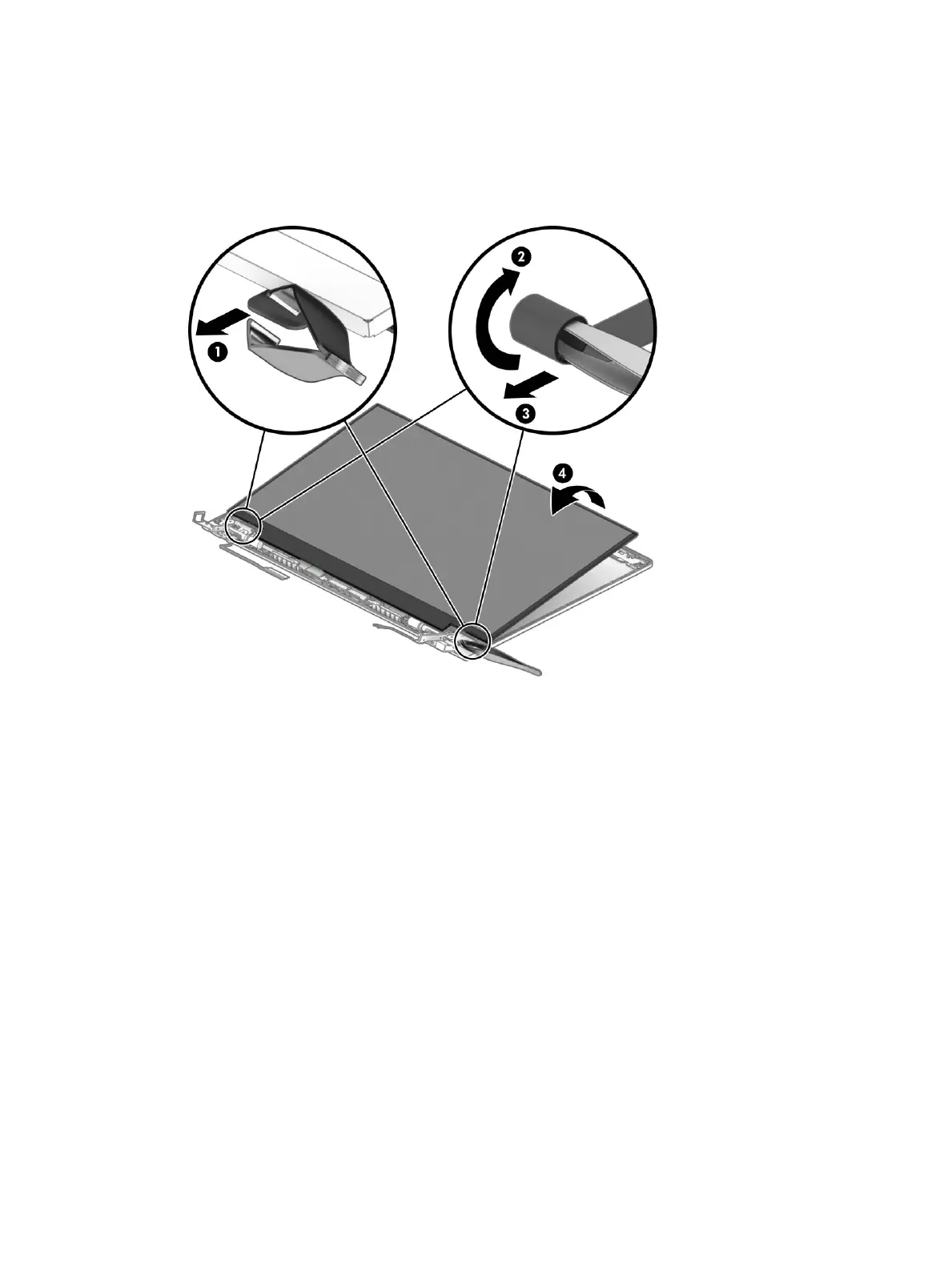

5. Rotate the display panel over and place next to the display enclosure (4).
Display panels are available as the following spare part numbers:
L97217-001: HD panel
L97216-001: FHD panel, touch-on panel (TOP)
6. Lift the tape from the connector on the display panel (1), lift the locking lever (2), and then disconnect
the cable from the panel (3).
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
