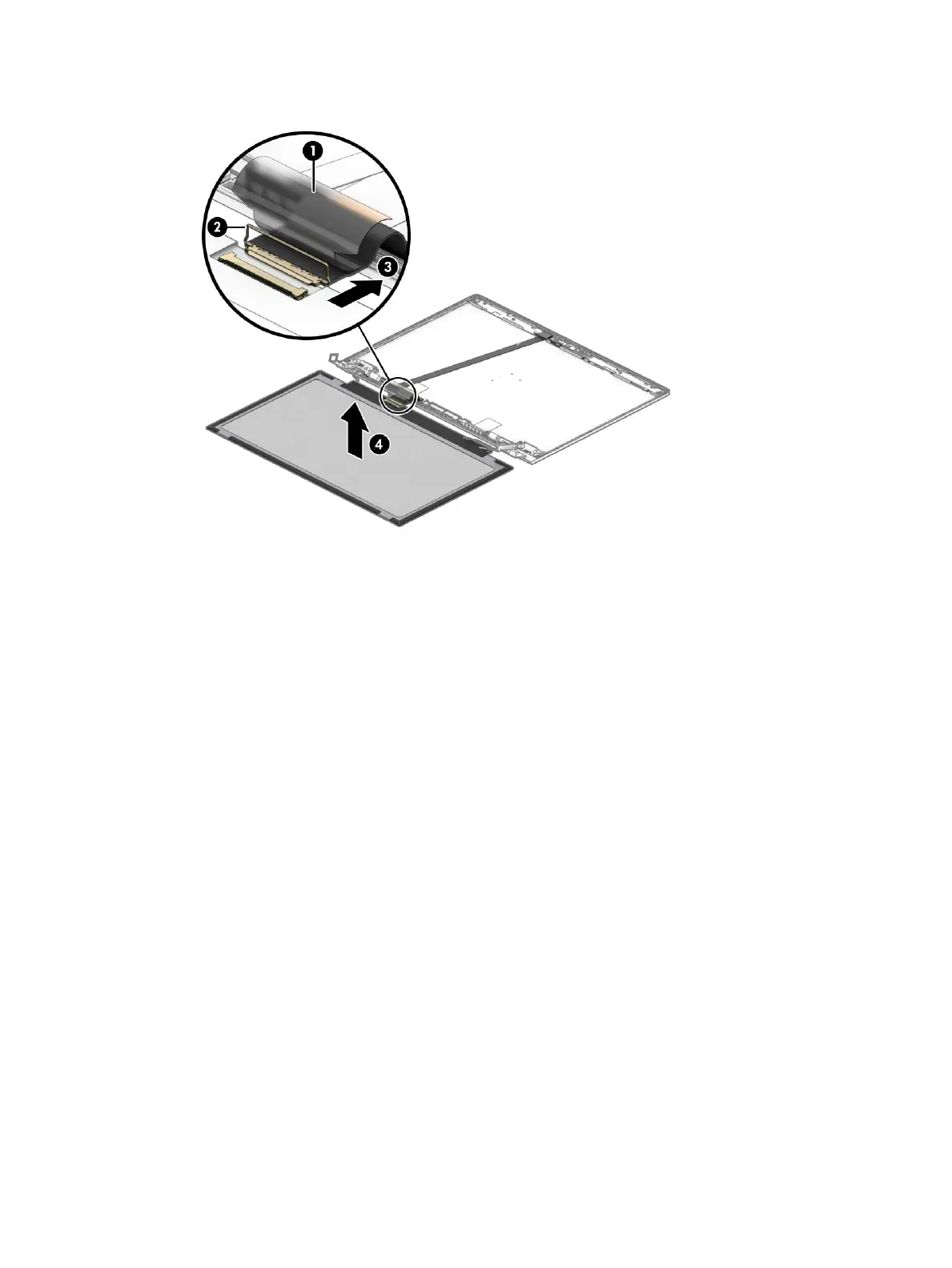

7. Remove the panel (4).
8. Use the following steps to install a display panel:
a. Remove the backing from the bottom of the new tape to install in the display enclosure (1).
b. Locate the tape alignment marks, and then install the tape onto the left and right sides on the
inside of the enclosure (2).
c. Remove the backing from the top of the installed tape (3).
Component replacement procedures 55
