d. Rotate the panel into place in the display enclosure.

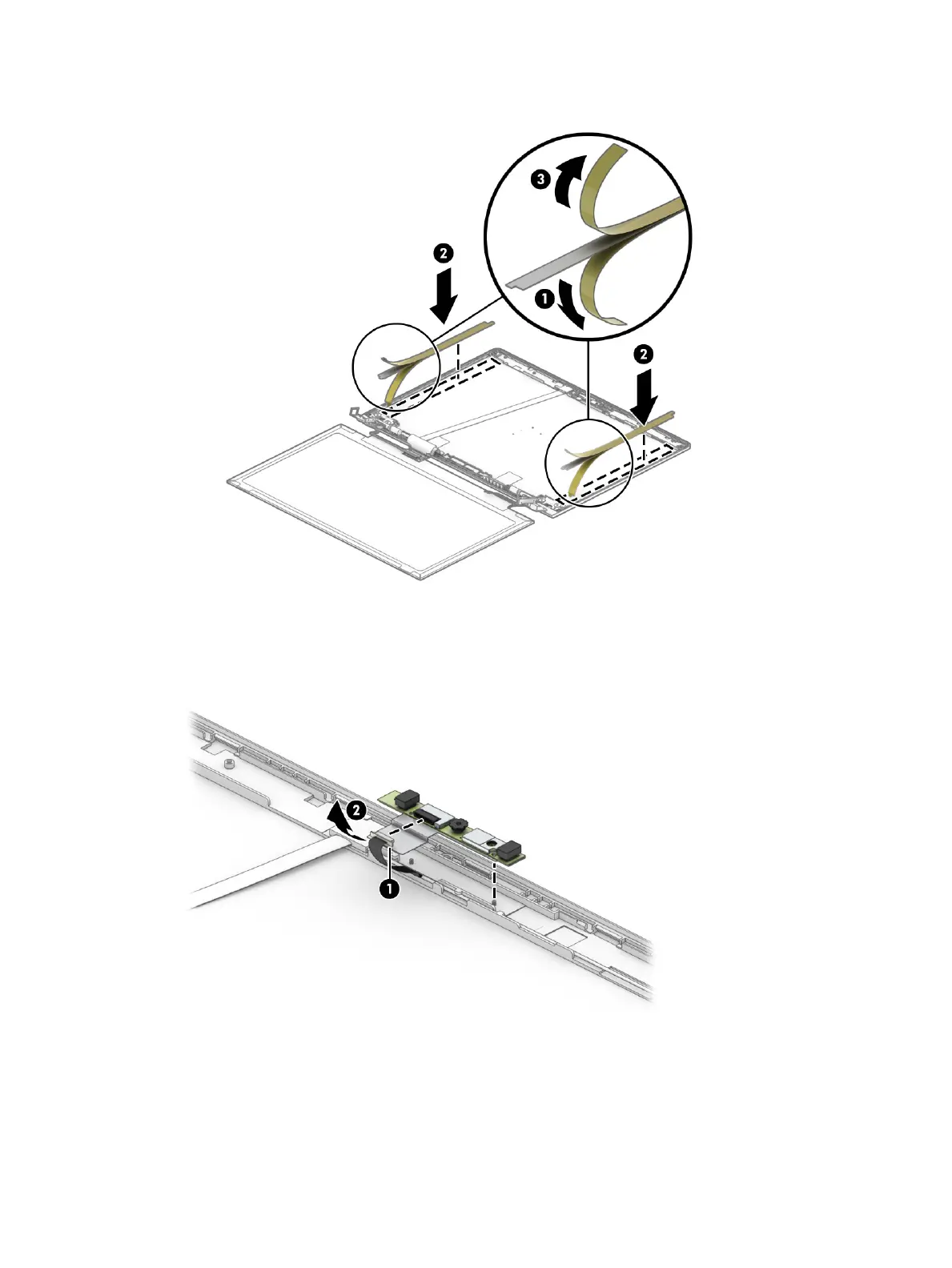

9. If it is necessary to remove or replace the HD camera, disconnect the cable from the camera (1), and
then peel the silver tape up to remove the module from the enclosure (2).
The HD camera is available as spare part number L81889-001.
56 Chapter 5 Removal and replacement procedures for authorized service provider parts
