1. Prepare the computer for disassembly (see Preparation for disassembly on page 36).
2. Remove the bottom cover (see Bottom cover on page 36).
3. Disconnect the battery cable from the system board (see Battery on page 37).

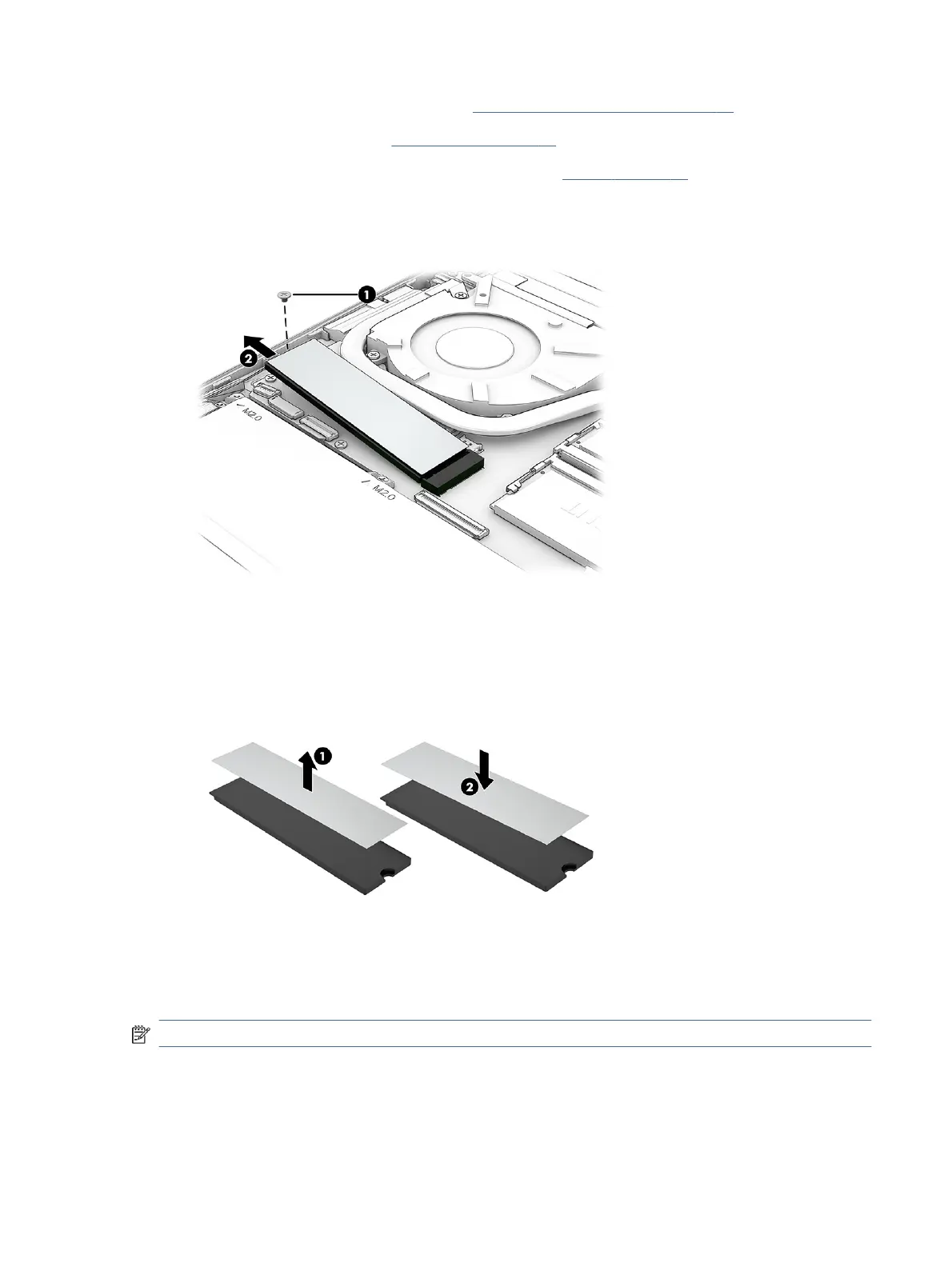

Remove the solid-state drive:
1. Remove the Phillips M2.0 × 2.0 screw (1), and then pull the drive out of the slot (2).
2. When installing a drive, be sure to remove the cover from the old drive (1) and install the cover onto the
new drive (2).
To install the solid-state drive, reverse the removal procedures.
NOTE: Solid-state drives are designed with a notch to prevent incorrect insertion.
Memory modules
To remove the memory modules, use this procedure and illustration.
Memory modules
33
