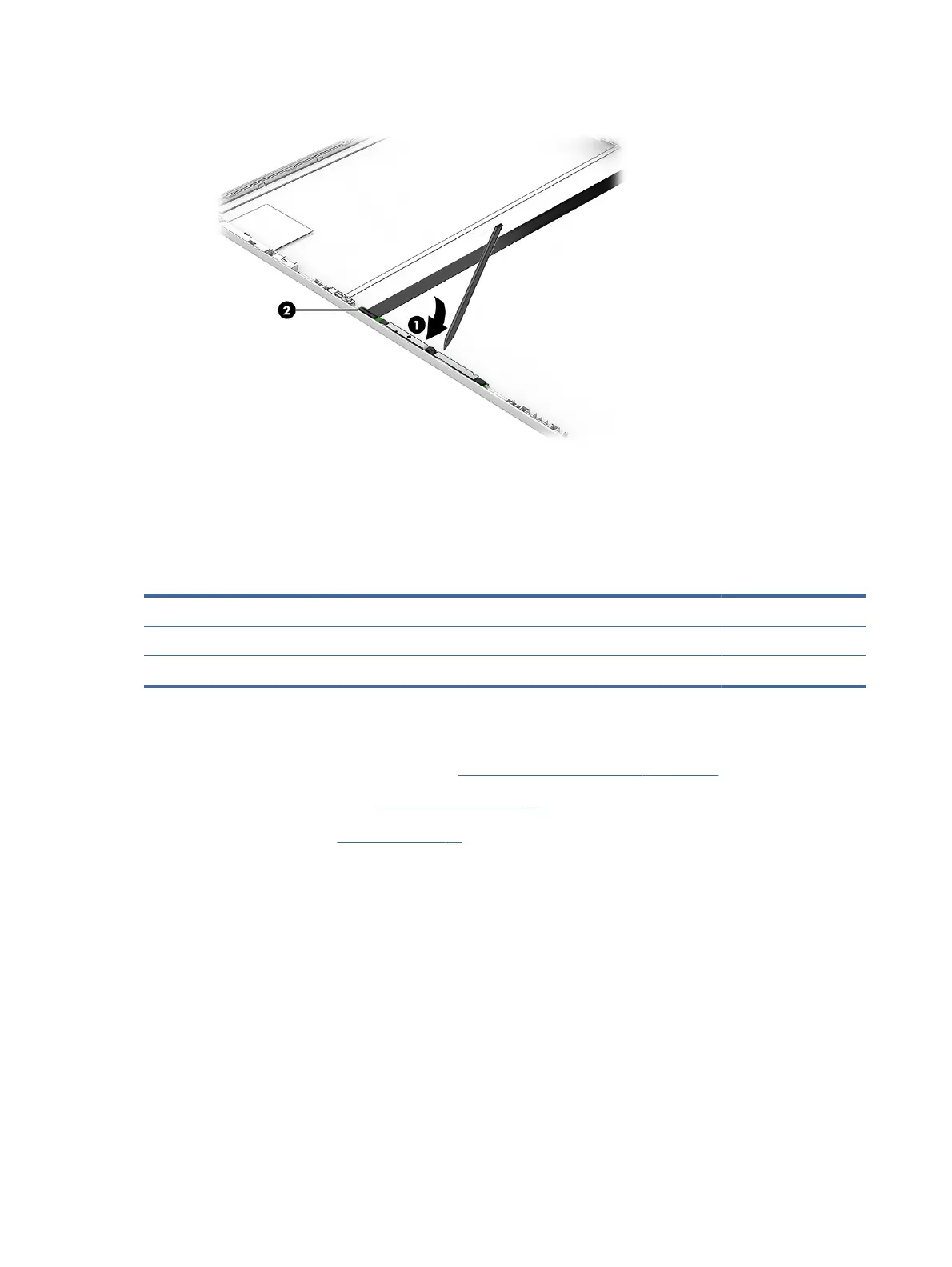

c. Disconnect the cables from the reverse ZIF connector on the camera module (2).
To install display subcomponents, reverse the removal procedures.
Heat sink assembly
To remove the heat sink assembly, use this procedure and illustration.
Table 6-8
Heat sink description and part number
Description Spare part number
Heat sink assembly for use in models with 3050 or 3050Ti graphics N14084-001
Heat sink assembly for use in models with 3060 or 3070 Ti graphics N14085-001
Before removing the heat sink assembly, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 36).
2. Remove the bottom cover (see Bottom cover on page 36).
3. Remove the battery (see Battery on page 37).
Remove the heat sink assembly:
1. Loosen the seven captive Phillips screws (1).
2. Remove the three Phillips M2.0 × 5.0 screws (2).
3. Remove the Phillips M2.0 × 3.5 screw (3).
46
Chapter 6Removal and replacement procedures for authorized service provider parts
