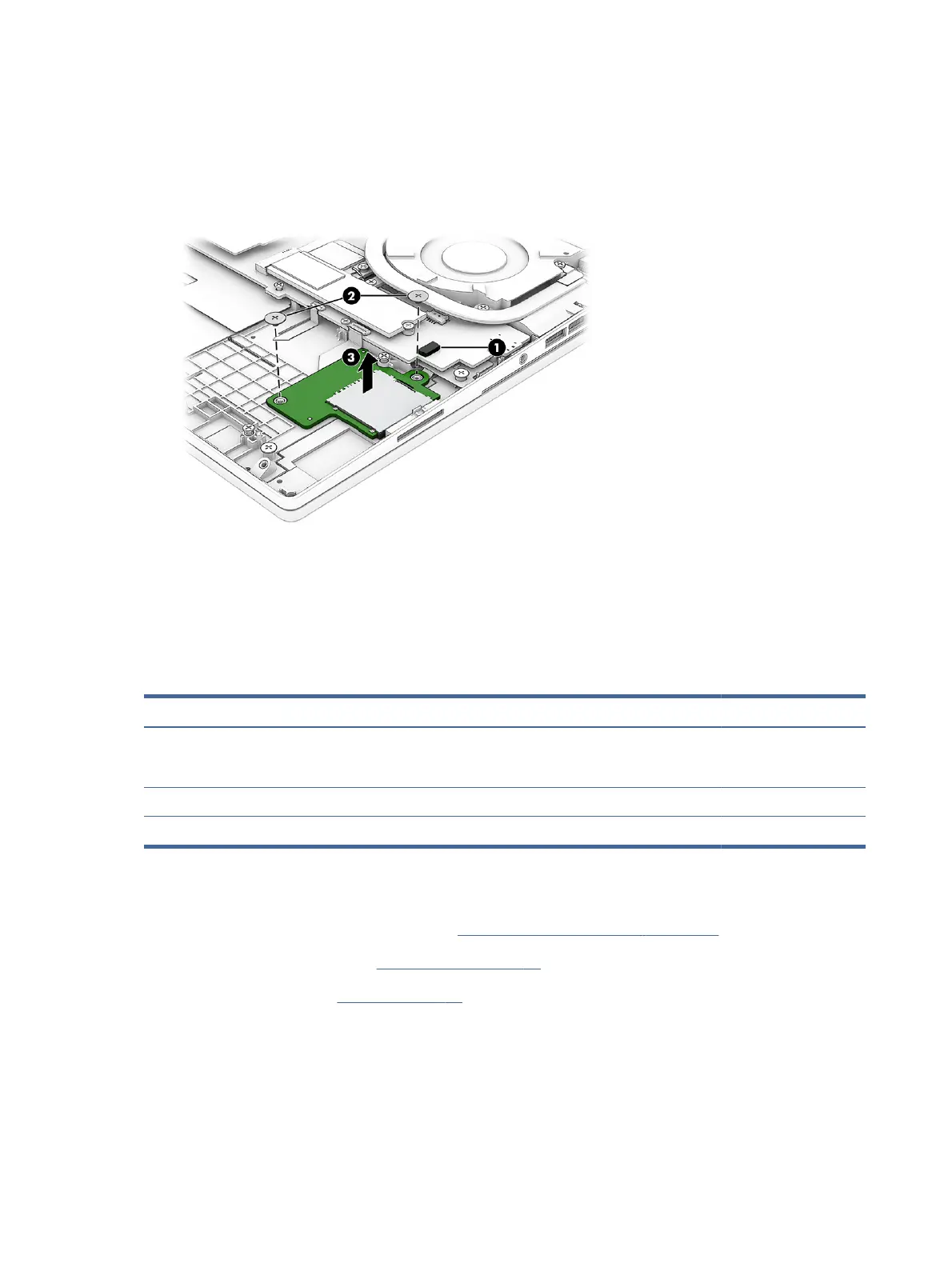

Remove the card reader:
1. Disconnect the cable from the ZIF connector on the system board (1).
2. Remove the two Phillips M2.0 × 2.5 screws (2) that secure the card reader to the computer.
3. Remove the card reader from the computer (3).
To install the card reader, reverse this procedure.
Per key lighting board
To remove the lighting board, use this procedure and illustration.
Table 6-6
Lighting board description and part number
Description Spare part number
Lighting board available with the top
cover with keyboard
spare part
Lighting board LED cable N14074-001
Lighting board keyboard cable N14073-001
Before removing thelighting board, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 36).
2. Remove the bottom cover (see Bottom cover on page 36).
3. Remove the battery (see Battery on page 37).
Remove the lighting board:
1. Remove the two Phillips M2.0 × 2.5 screws (1) that secure the board to the computer.
42
Chapter 6Removal and replacement procedures for authorized service provider parts
