1. Prepare the computer for disassembly (see Preparation for disassembly on page 36).
2. Remove the bottom cover (see Bottom cover on page 36).
3. Disconnect the battery cable from the system board (see Battery on page 37).
Remove the speakers:

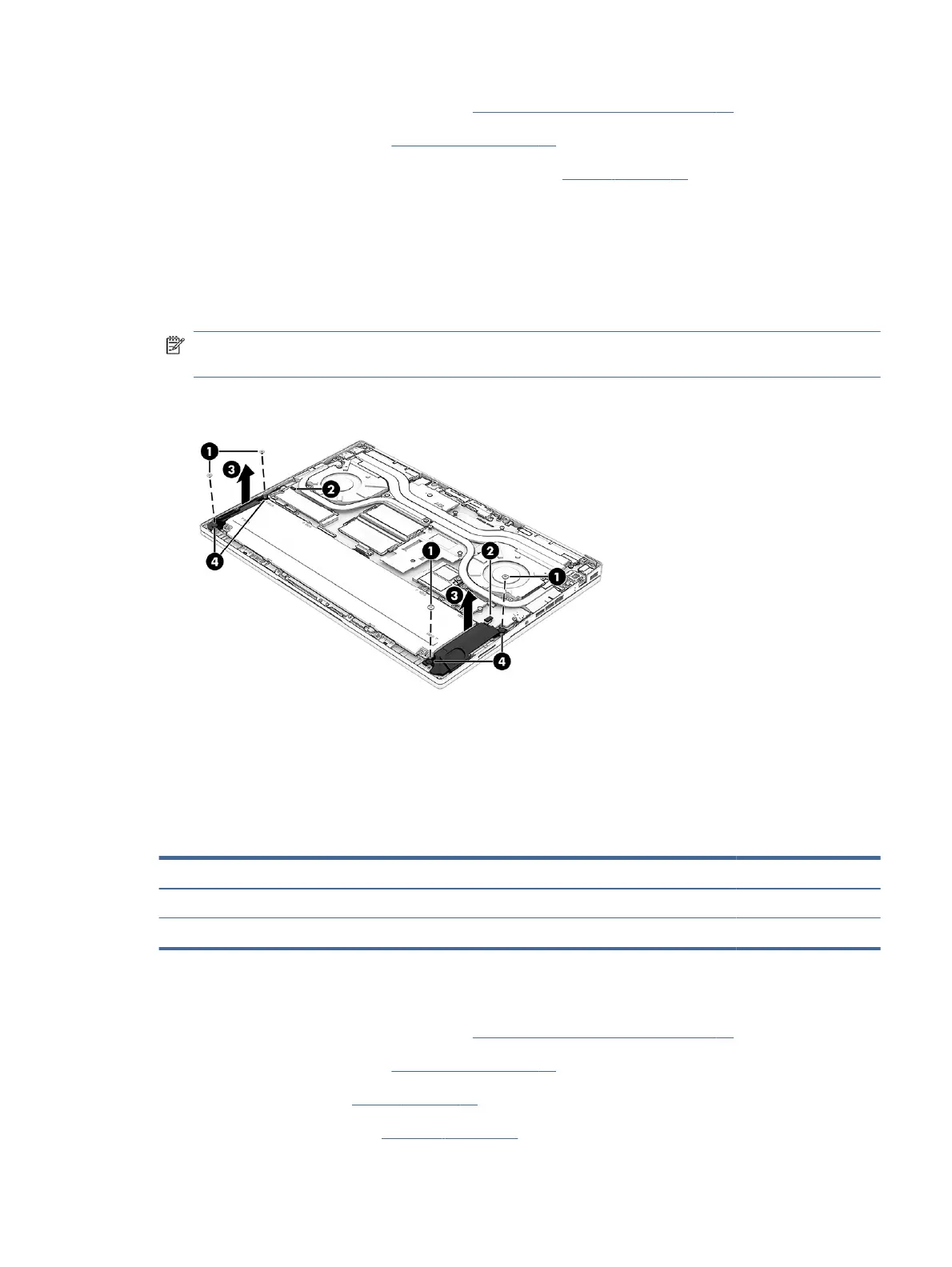

1. Remove the two broadhead Phillips M1.5 × 2.5 screws (1) that secure each speaker to the computer.
2. Disconnect the speaker cables from the system board (2).
3. Remove the speakers from the computer (3) .
NOTE: When removing the speakers, make note of the location of the rubber isolators (4). The absence
of or damage to these isolators can result in degraded speaker performance.
To install the speakers, reverse this procedure.
Card reader
To remove the card reader, use this procedure and illustration.
Table 6-5
Card reader description and part number
Description Spare part number
Card reader N14068-001
Card reader cable N14067-001
Before removing thecard reader, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 36).
2. Remove the bottom cover (see Bottom cover on page 36).
3. Remove the battery (see Battery on page 37).
4. Remove the left speaker (see Speakers on page 40).
Card reader
41
