f. Pull the cable out of the connector (3).

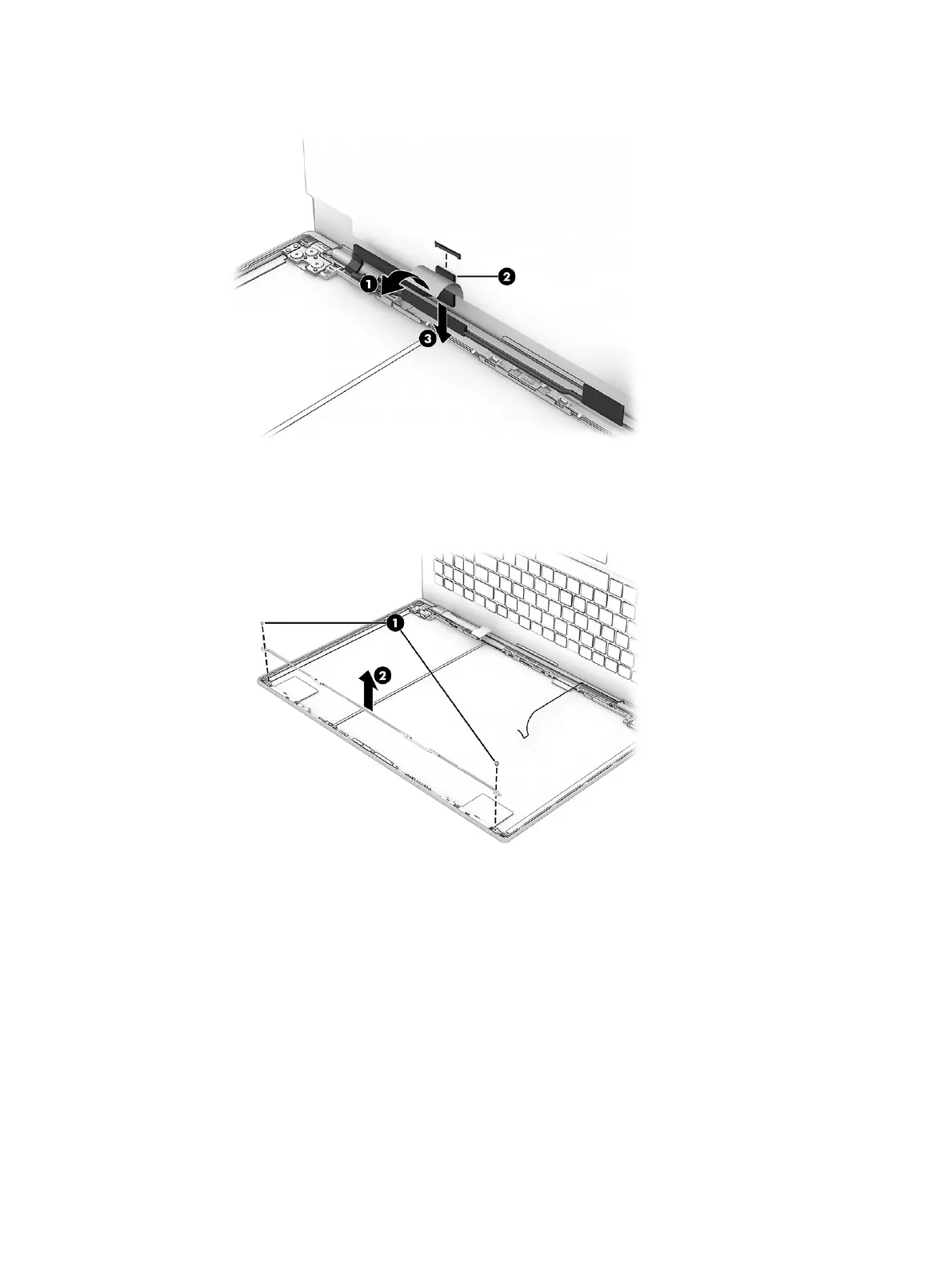

4. To replace the camera module:
a. Remove the two Phillips M2.0 × 3.0 screws (1) from top bracket, and then remove the bracket from
the display rear cover (2).
b. Use to tool to detach the module (1) from the display back cover. (The module is attached to the
display back cover with double-sided adhesive.)
Display subcomponents (without removing the display) 45
