Table 6-10 RJ-45 (network) board description and part number
Description Spare part number
RJ-45 (network) board N14069-001
RJ-45 (network) board cable N14070-001
RJ-45 (network) jack door N14072-001
Before removing theRJ-45 (network) board, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 36).
2. Remove the bottom cover (see Bottom cover on page 36).
3. Disconnect the battery cable from the system board (see Battery on page 37).
4. Remove the system board, heat sink, and fan assembly (see System board, heat sink, fan combination on
page 48).

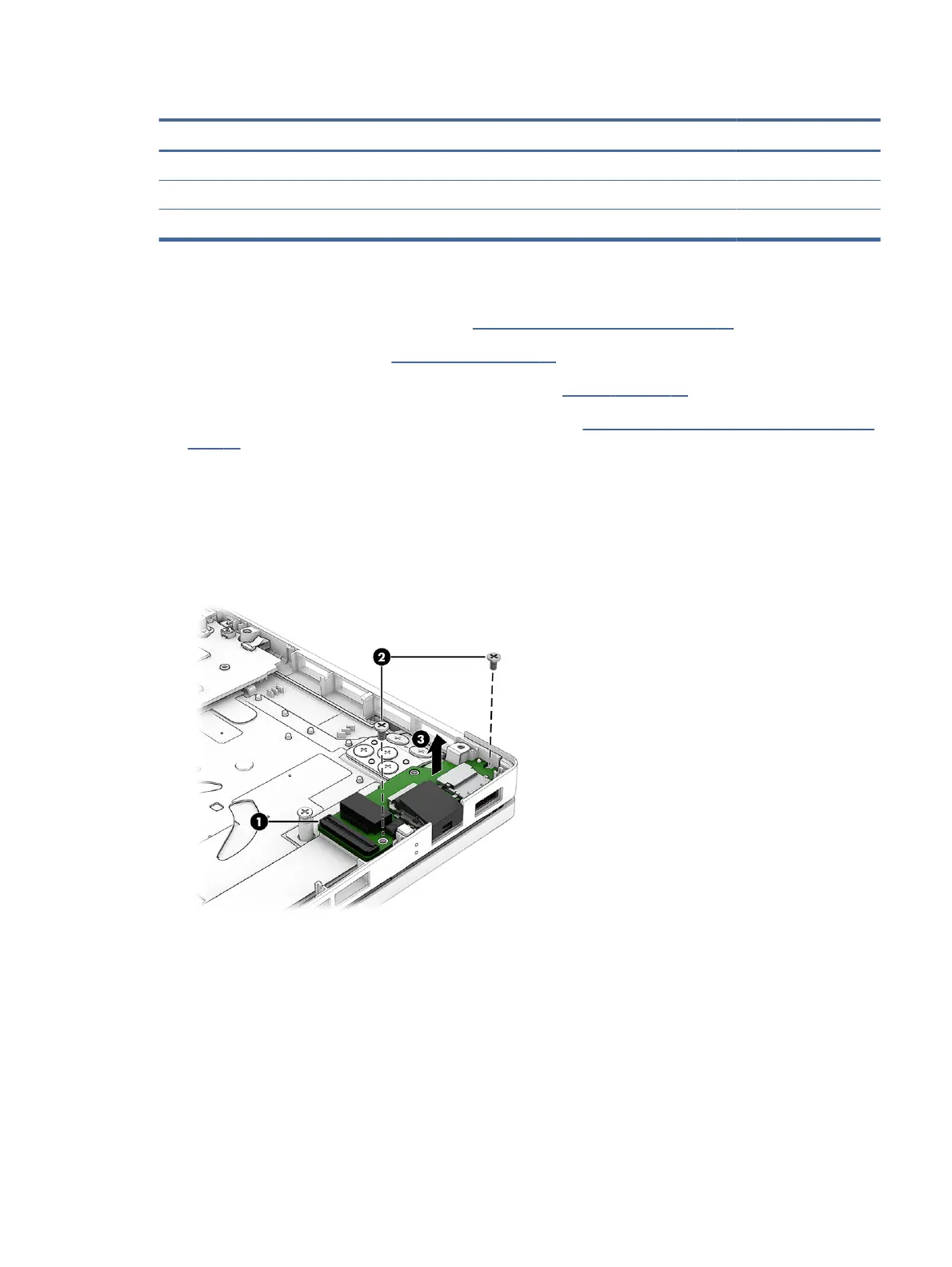

Remove the RJ-45 (network) board:
1. Disconnect the cable from the ZIF connector on the RJ-45 (network) board (1).
2. Remove the two Phillips M2.0 × 3.5 screws (2) that secure the board to the computer.
3. Remove the board (3).
RJ-45 (network) board 51
