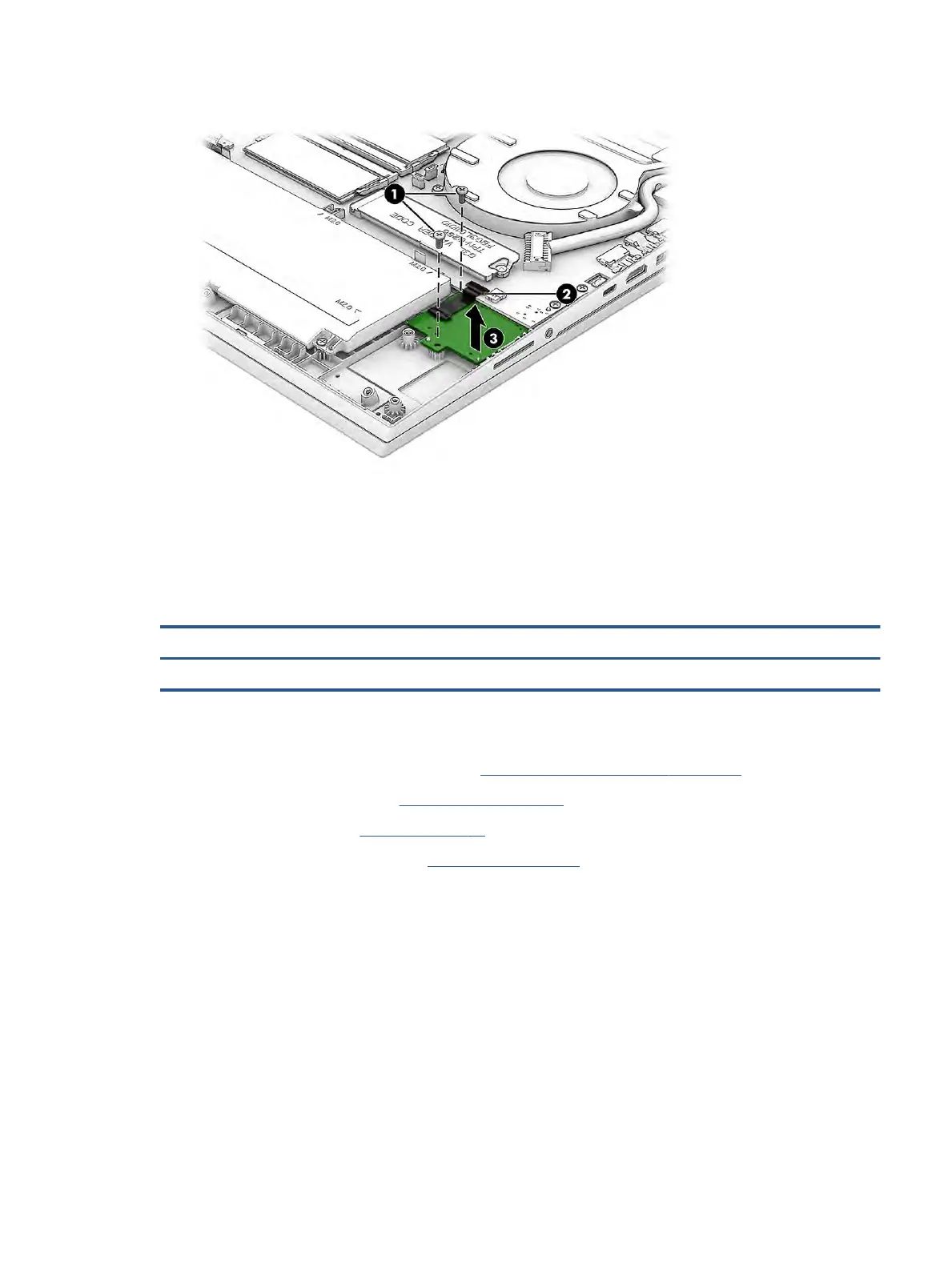

3. Remove the card reader from the computer (3).
Reverse this procedure to install the card reader.
Speaker, right
To remove the right speaker, use this procedure and illustration.
Table 5-7 Right speaker description and part number
Description Spare part number
Speaker, right M57130-001
Before removing the right speaker, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 30).
4. Remove the card reader board (see Card reader on page 36).
Remove the right speaker:
1. Remove the two Phillips M2.0 × 2.5 screws from the speaker (1).
2. Disconnect the speaker cable from the system board (2).
Component replacement procedures 37
