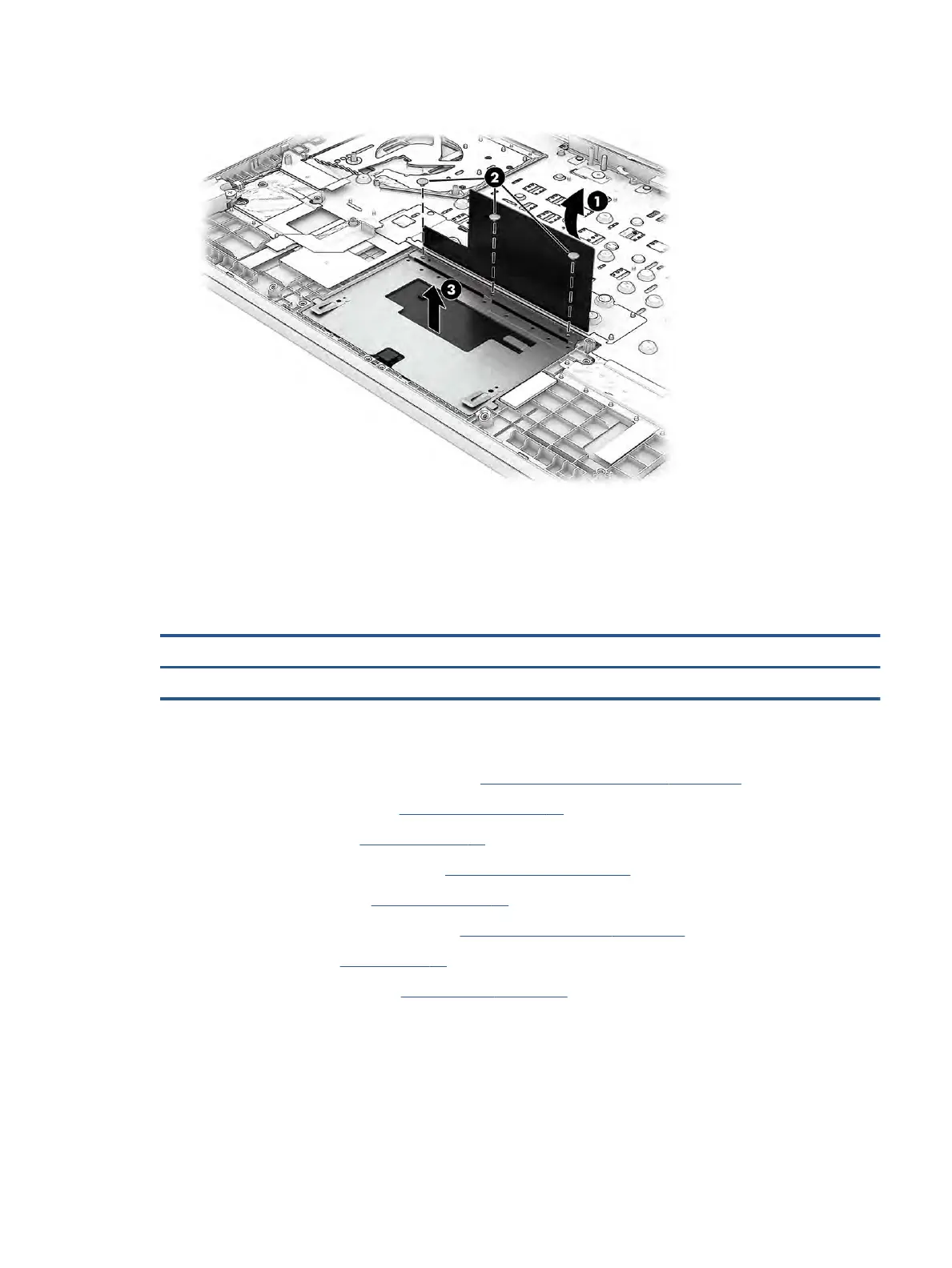

5. Remove the touchpad from the computer (3).
Reverse this procedure to install the touchpad.
RJ-45 door
To remove the RJ-45 door, use this procedure and illustration.
Table 5-16 RJ-45 door description and part number
Description Spare part number
RJ-45 door M57116-001
Before removing the RJ-45 door, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 30).
4. Remove the left solid-state drive (see Solid-state drive on page 32).
5. Remove the heat sink (see Heat sink on page 38).
6. Remove the power connector cable (see Power connector cable on page 40).
7. Remove the fans (see Fans on page 41).
8. Remove the system board (see System board on page 44).
Remove the RJ-45 door:
▲ From the inside of the computer, insert a at tool under the RJ-45 door (1), and then lift the door up to
remove it (2).
Component replacement procedures 49
