HDMI connector HDMI1

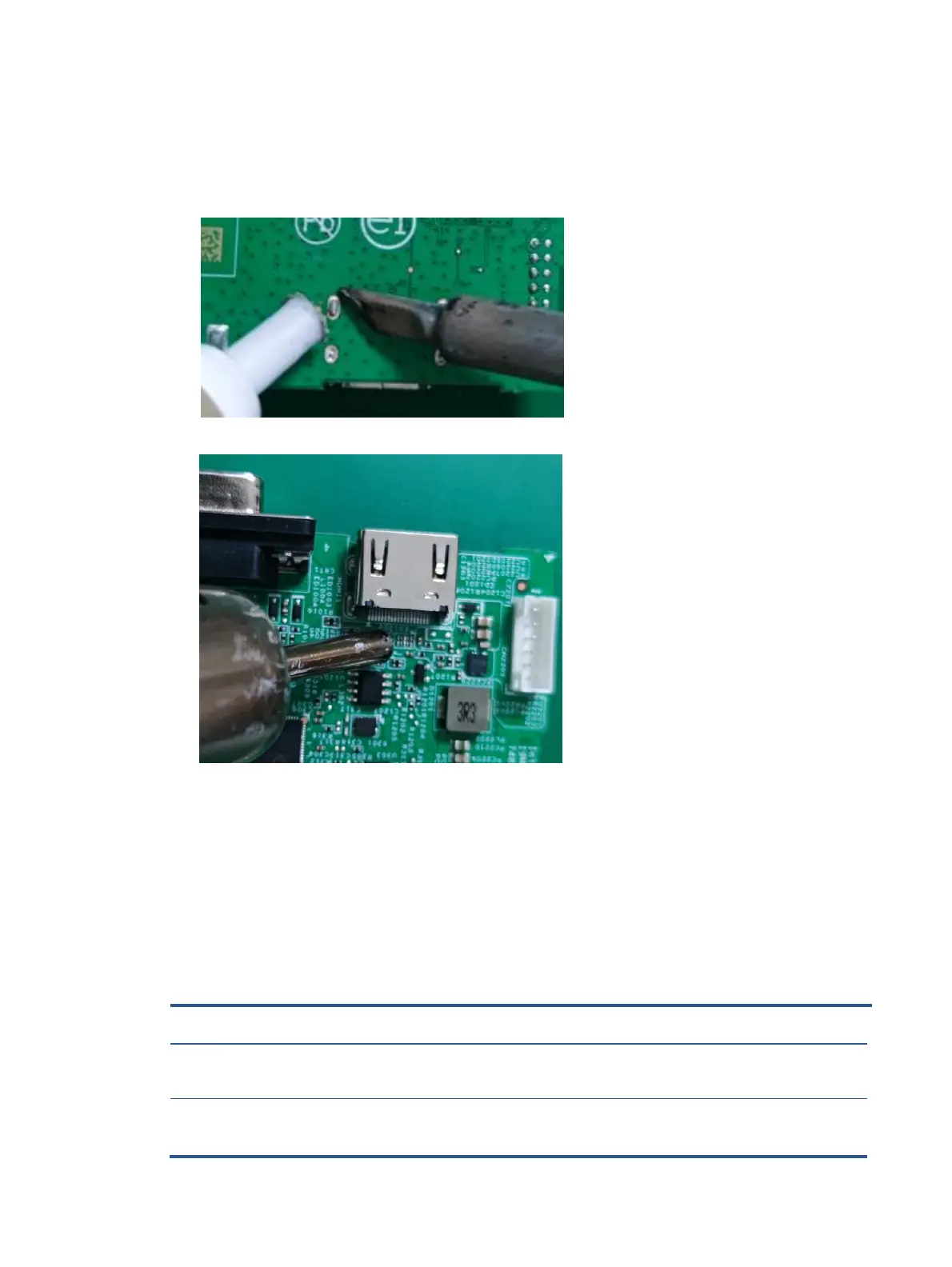

Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the HDMI connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
Function test
After repair, be sure to confirm that all functions are working.
Table 4-1 Function test
Test item
Operating description
Tool used
VGA test
Confirm whether image displays and sound plays
correctly on the monitor.
Computer or DVD player,
sound bar
HDMI Test
Confirm whether image displays correctly on the
monitor
Computer or DVD player

HP P22v G4 Specifications

General

Color gamut	72 %
Screen shape	Flat
Display diagonal	21.5 \
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Viewing angle, vertical	160 °
Contrast ratio (typical)	1000:1
Display number of colors	-
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1400 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Sustainability certificates	ENERGY STAR
Product color	Black
Market positioning	Business
HDMI	Yes
HDMI version	1.4
Package depth	120 mm
Package width	567 mm
Package height	387 mm
Package weight	3790 g
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
Power consumption (average)	0.5 W
Power consumption (standby)	18.5 W
Power consumption (typical)	19 W
Panel mounting interface	100 x 100 mm
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	188.9 mm
Height (with stand)	381.2 mm
Weight (with stand)	2850 g
Depth (without stand)	42 mm
Width (without stand)	505 mm
Height (without stand)	310.2 mm
