HP P22v G5 User Manual

9
4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions”
sections in the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare
the area for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
• Press fixture
• Working table
• Screwdriver
• Knife
• Gloves
• Cleaning cloth
• ESD protection

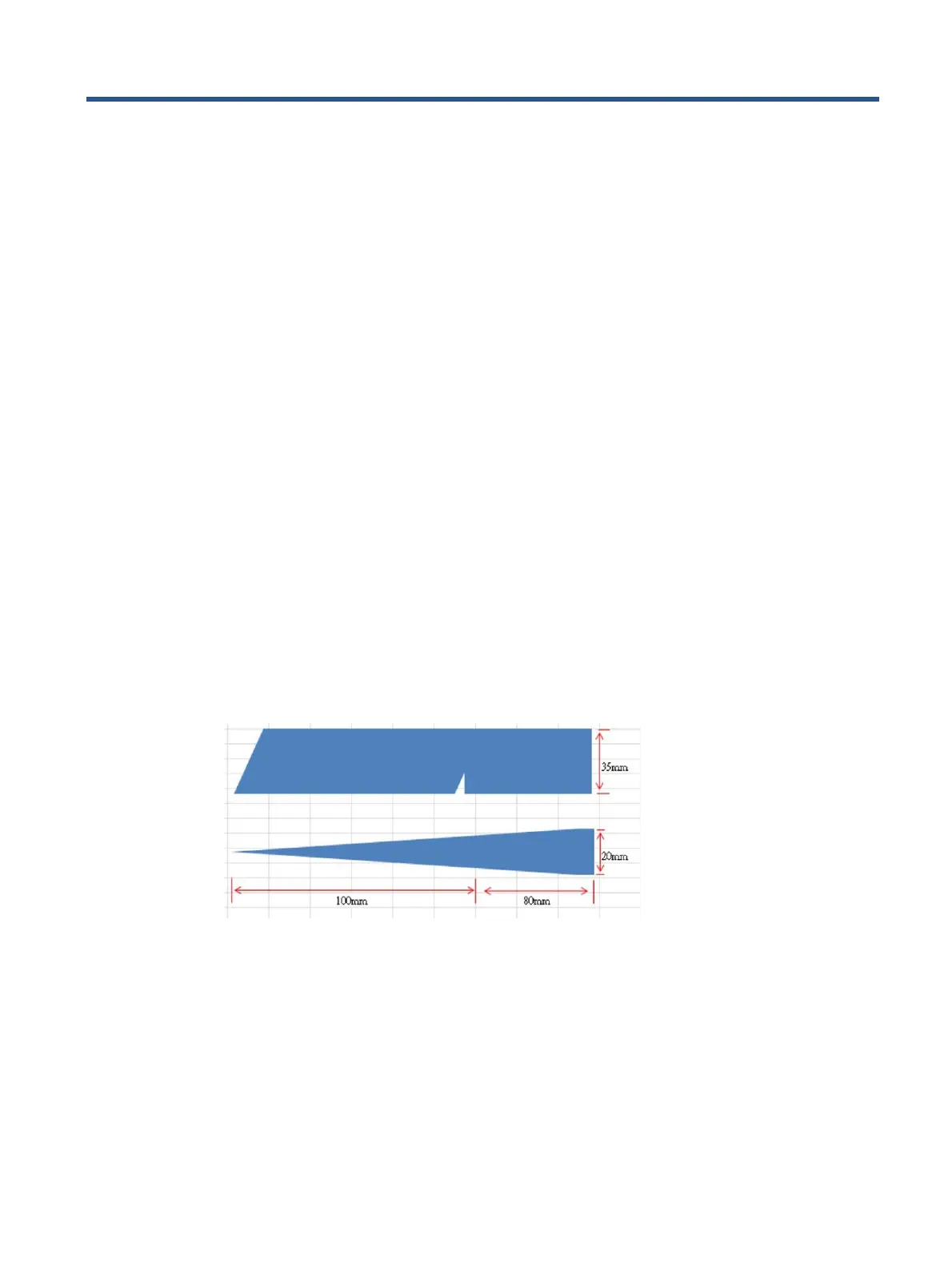

• Scraper bar in the following dimensions:

HP P22v G5 Specifications

General

Color depth	8 bit
Color gamut	72 %
Pixel pitch	0.25 x 0.24 mm
Screen shape	Flat
Pixel density	103 ppi
Display diagonal	21.45 \
Surface hardness	3H
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	54 - 88.1 kHz
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	54.5 cm
Display brightness (typical)	200 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDCP	Yes
HDMI version	1.4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	21 W
Power consumption (standby)	0.5 W
Power consumption (typical)	11 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Feet color	Black
Market positioning	Business
Package weight	4300 g

Weight and Dimensions

Depth (with stand)	180.5 mm
Width (with stand)	504.2 mm
Height (with stand)	386.9 mm
Weight (with stand)	2800 g
Depth (without stand)	50.8 mm
Height (without stand)	303 mm
