7–20 Hardware and Software Guide
Hardware Upgrades and Replacements

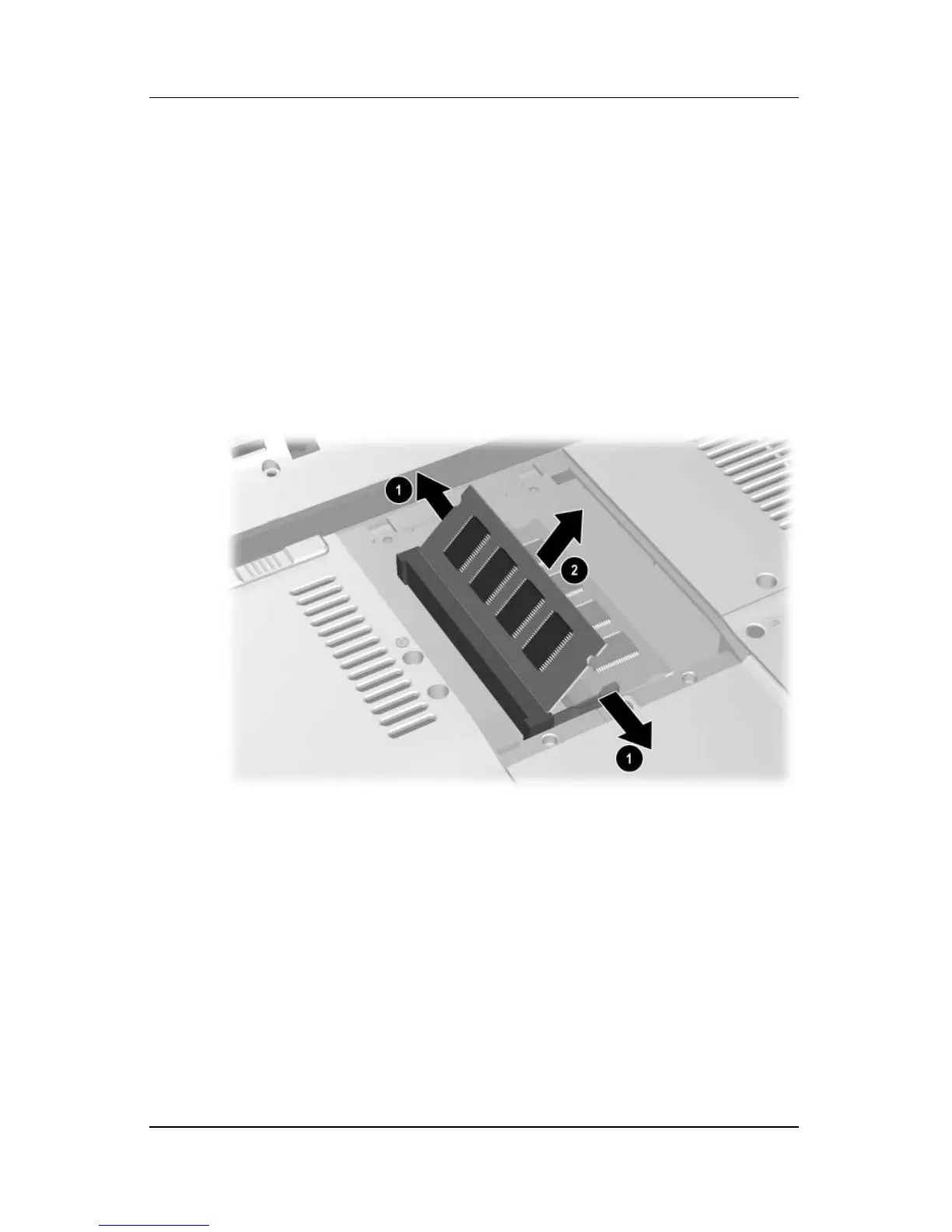

8. Remove or insert the memory module.
To remove a memory module:
a. Pull away the retention clips on each side of the
module
1. (The module tilts upward.)
b. Grasp the edges of the module and gently pull the
module
out of the memory slot 2.
c. To protect a memory module after removal, place it
in
an electrostatic-safe container.
