5–48 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the notebook right side up with the front toward you.
5. Release the ZIF connector 1 to which the TouchPad cable is
attached and disconnect the cable 2 from the system board.
6. Remove the 3 Phillips PM2.5×7.0 screws 3 that secure the
top cover to the base enclosure.

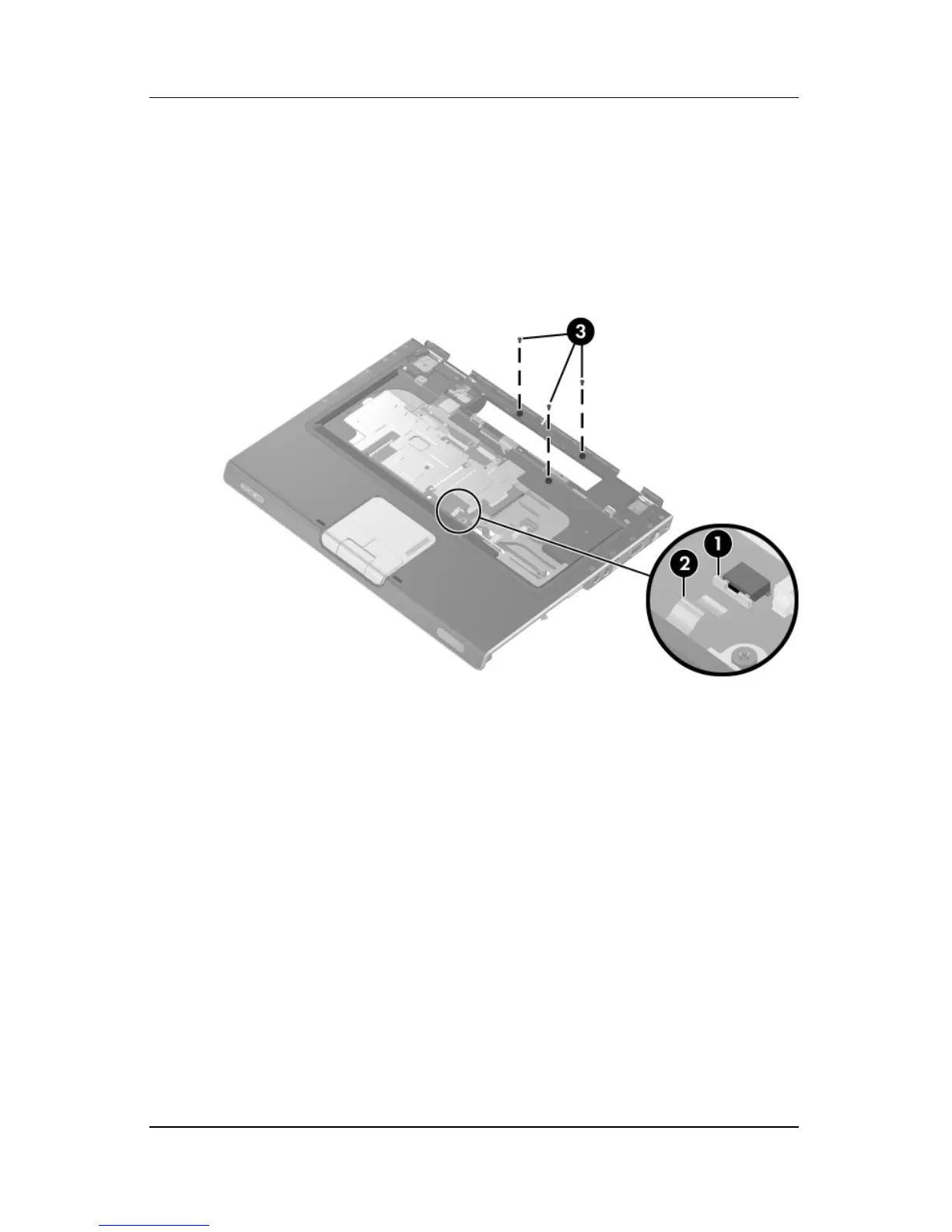

Removing the Top Cover Screws, Part 2,
HP Pavilion dv4000 Models
