5. Lift the inverter board from the computer (3).

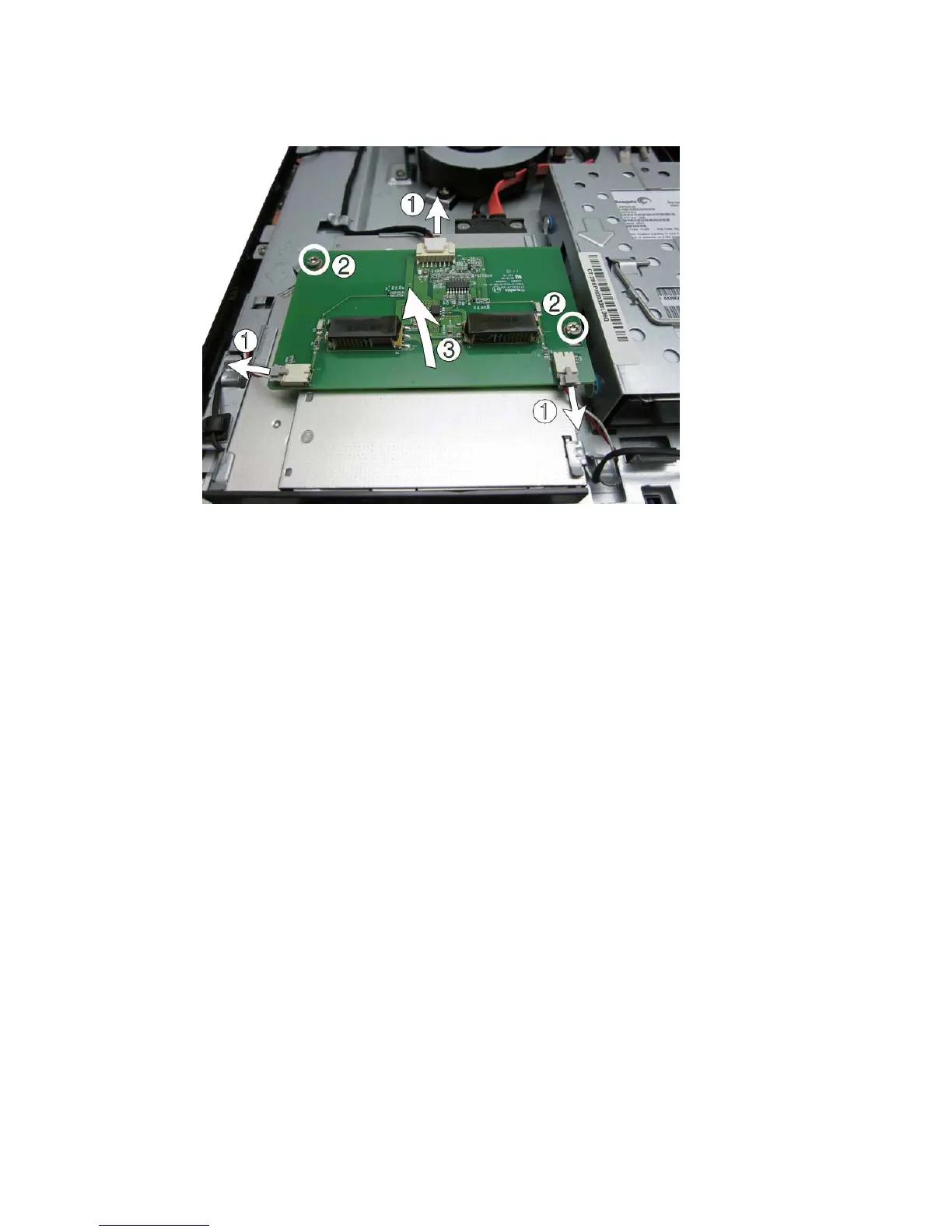

Figure 7-7 Removing the inverter board
To install the inverter board or cable, reverse the removal procedures.
Inverter Board 41
