Display Cable
Description Spare part number
Display cable 669996-001
The display cable is located just above the system board.

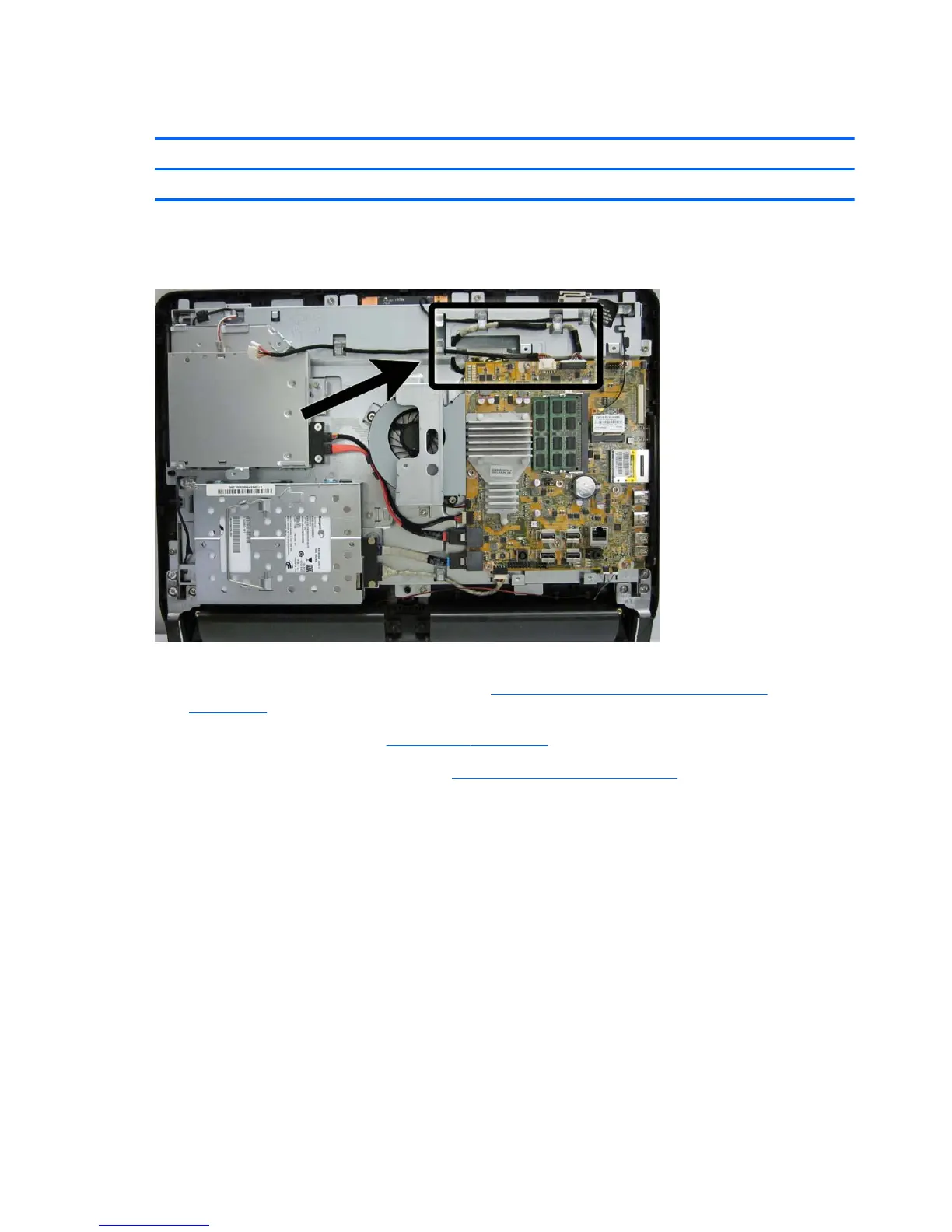

Figure 7-34 Display cable location
To remove the display cable:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 34).
2. Remove the rear cover (see
Rear Cover on page 35).
3. Remove the system board cover (see
System Board Cover on page 60).
4. Disconnect the cable from the system board (1).
5. Disconnect the cable from the display panel by pressing in the latches on the side of the cable
connector (2) and pulling it from the connector (3).
66 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
