HP Pro 1005 - Page 54

4. Use the bracket (2) to push the drive out of the bay, and then slide the drive out of the computer
(3).

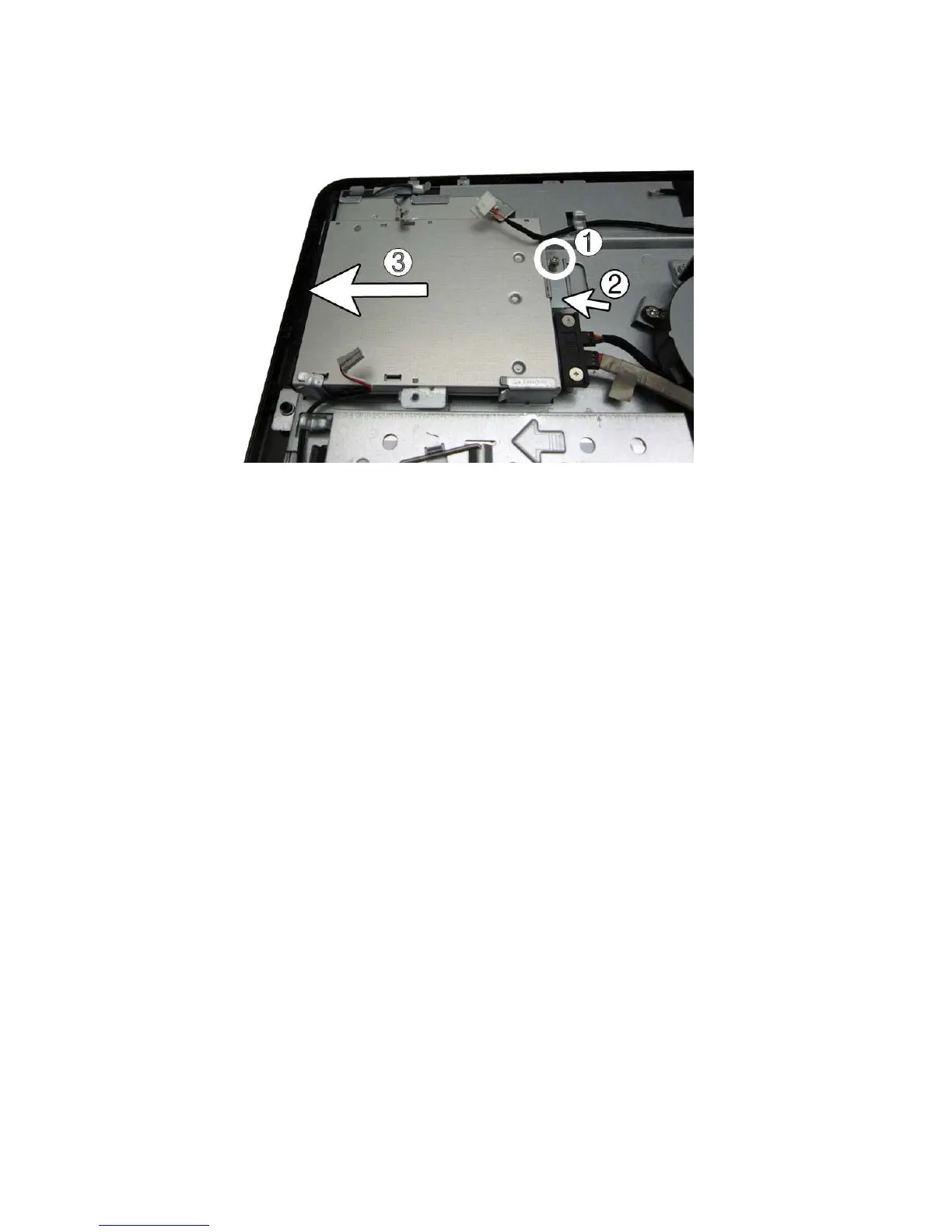

Figure 7-13 Removing the optical drive
To install an optical drive, reverse the removal procedures.
46 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
