Front Bezel
Description Spare part number
Front bezel 668569-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 101).
2. Remove the access panel (
Access Panel on page 102).
3. Lift up the three tabs on the top of the bezel.

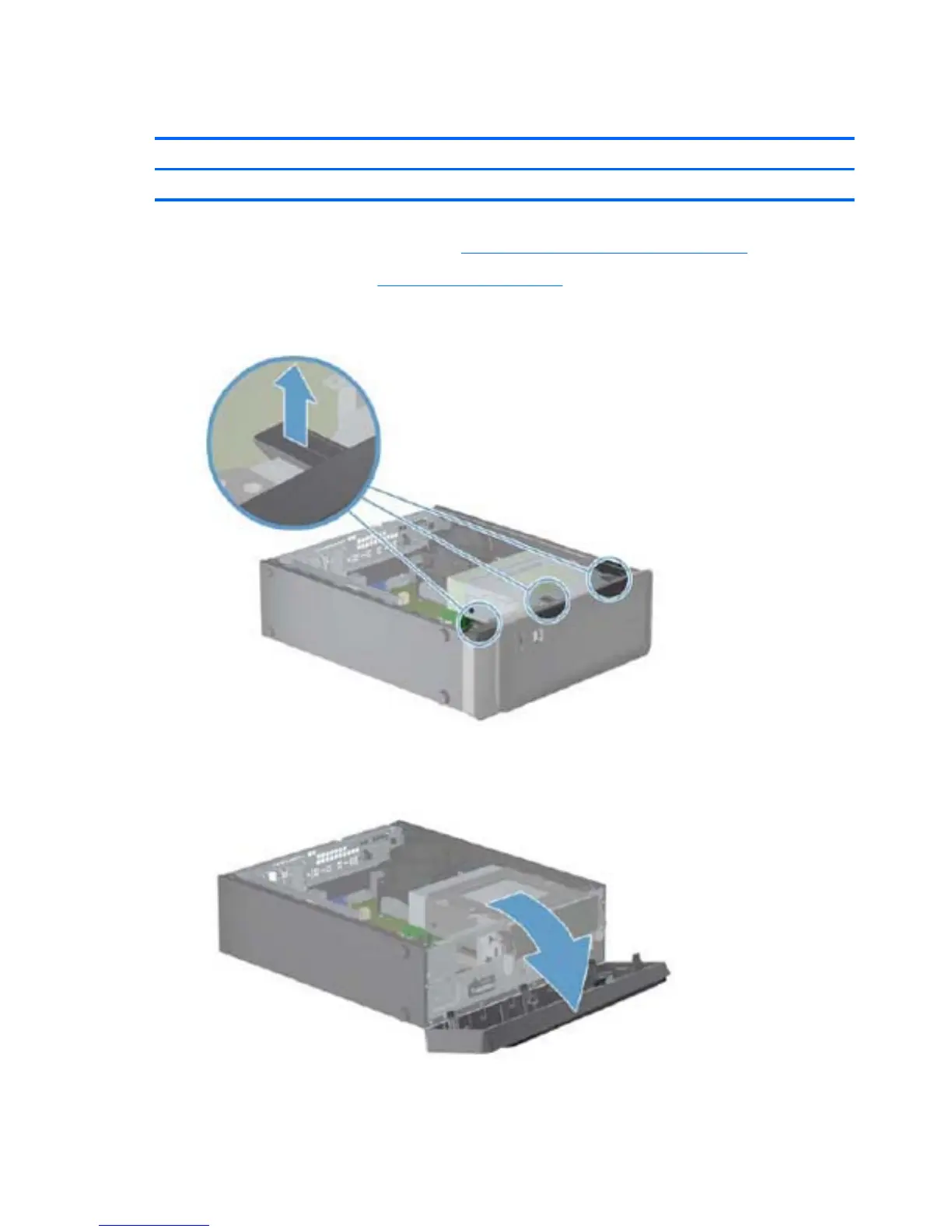

Figure 8-3 Removing the front bezel
4. Rotate the bezel off the chassis.
Figure 8-4 Removing the front bezel
To install the front bezel, reverse the removal procedure.
