Power Switch
Description Spare part number
Power switch/LED assembly 656984-001
The power switch is attached to the front of the chassis using tabs (no screws). Its cable routes
through metal tabs in the chassis floor. The power switch cable connects to the front USB assembly
cable.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 101).
2. Remove the access panel (
Access Panel on page 102).
3. Remove the front bezel (
Front Bezel on page 104).
4. Rotate the drive cage to its upright position.
5. From the inside of the computer, remove the power switch cable from the tabs on the computer
floor.

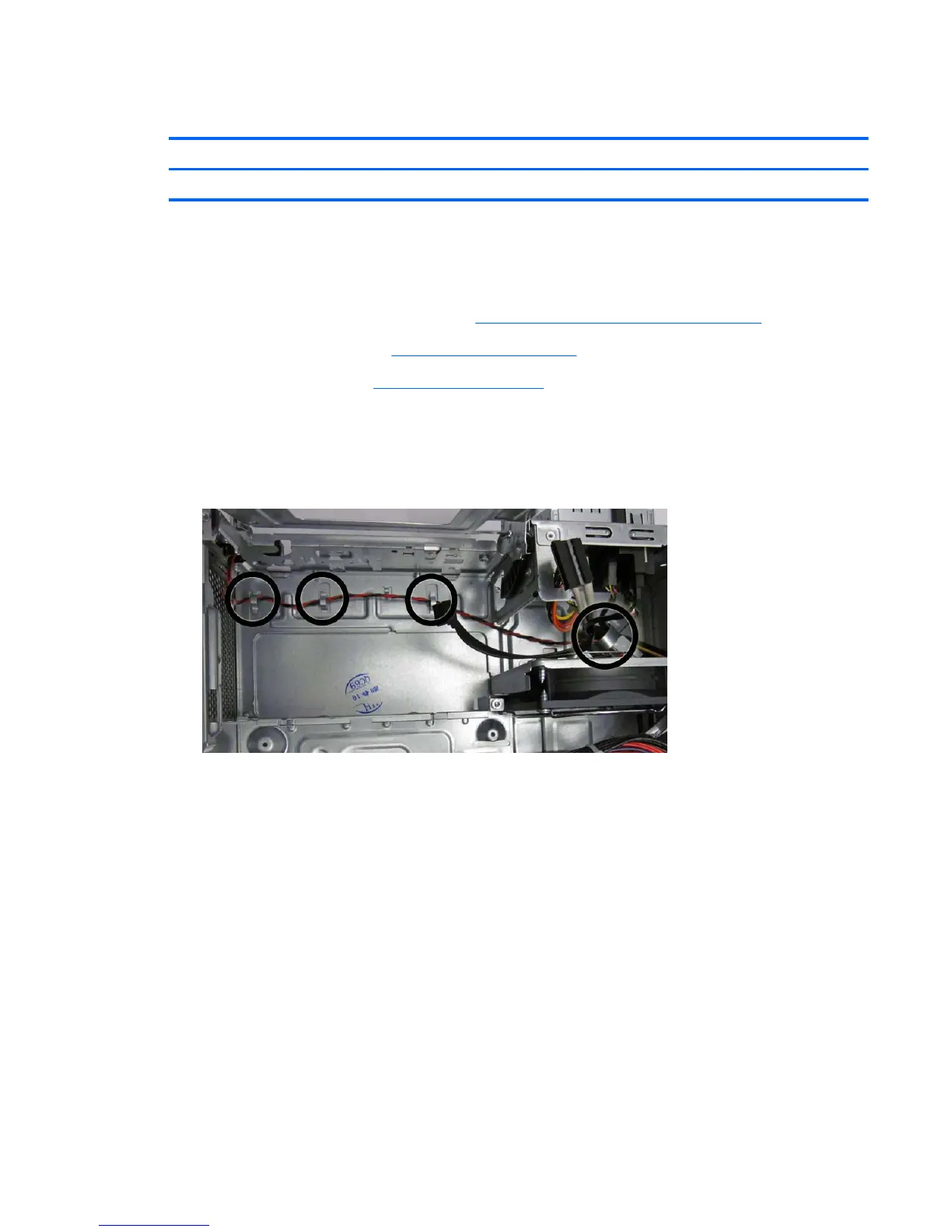

Figure 8-23 Removing the power switch cable
Power Switch 123
