8. Press the tab on the top of the switch holder (1) to disengage it from the chassis, lift the switch
upward to disengage the tab at the bottom of the switch (2) from the chassis, and then pull the
power switch away from the chassis while guiding the wires through the hole in the chassis.

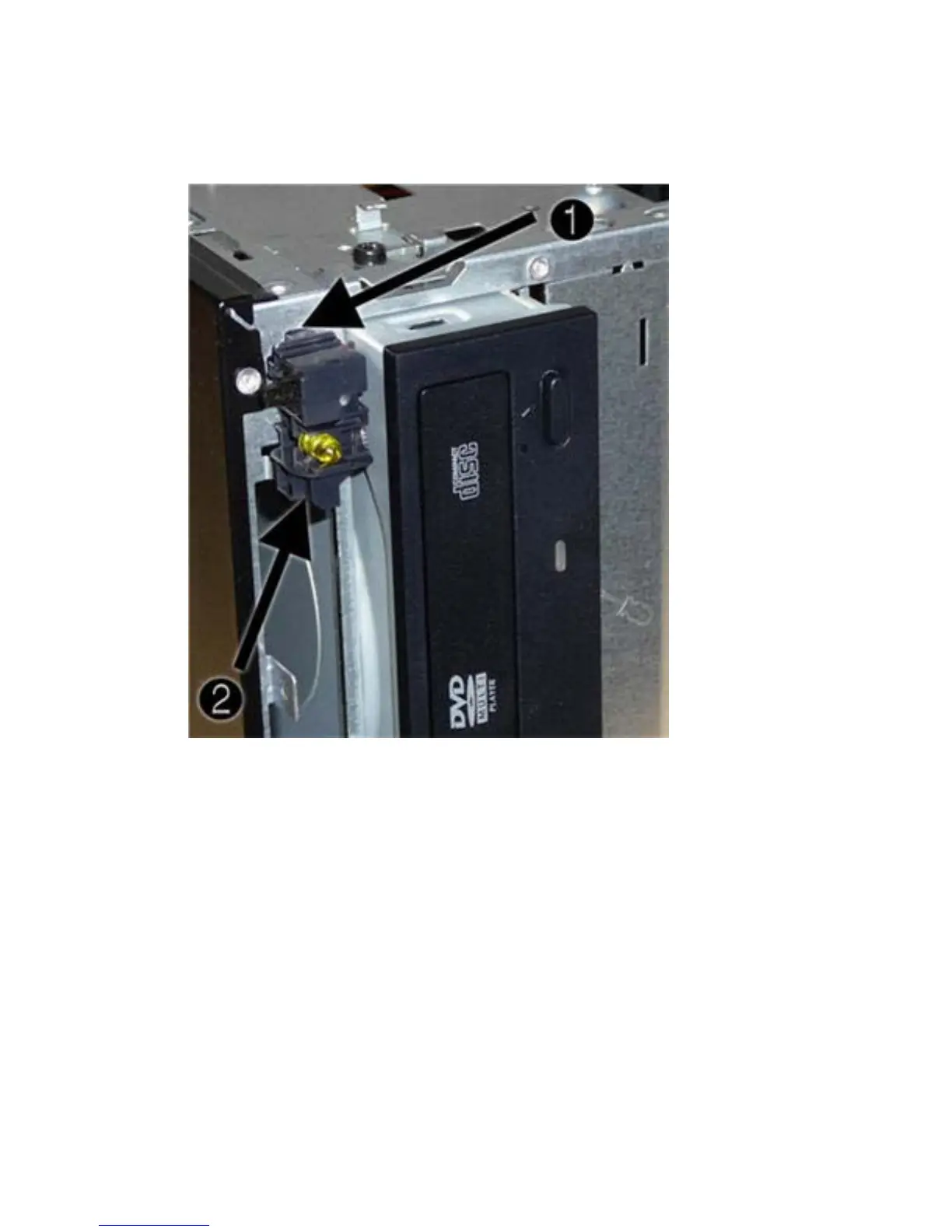

Figure 7-40 Removing the power switch assembly
To install the power switch/LED assembly, reverse the removal procedures.
86 Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
