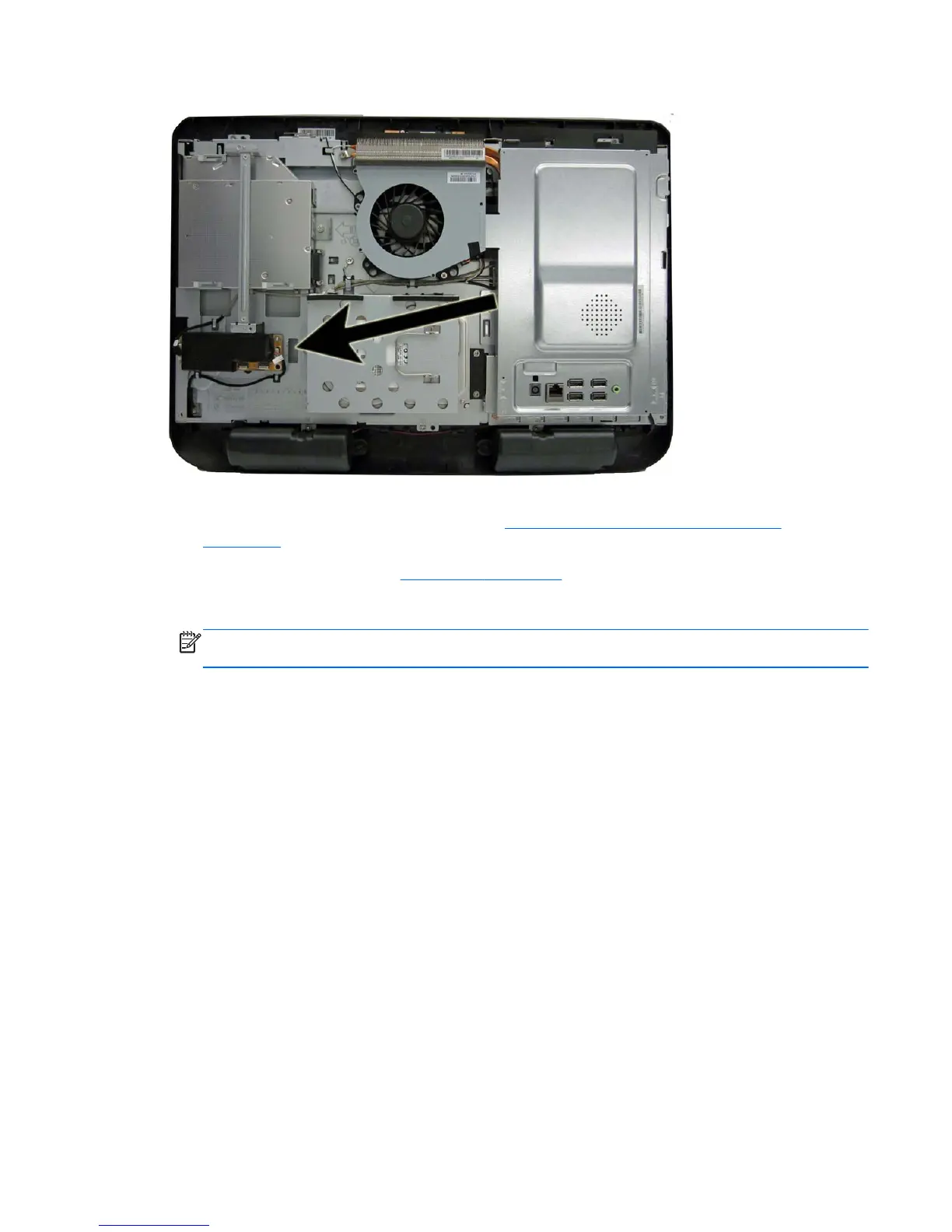

Figure 7-8 Converter board location
To remove the converter board:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 33).
2. Remove the rear cover (see
Rear Cover on page 34).
3. Disconnect the two cables from the board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires.
Converter Board 41
