5. Remove the two screws that secure the display panel to the bracket.
NOTE: The following images show screws on the sides of the display panel. Some panels
have screws on the top and bottom, not on the sides.

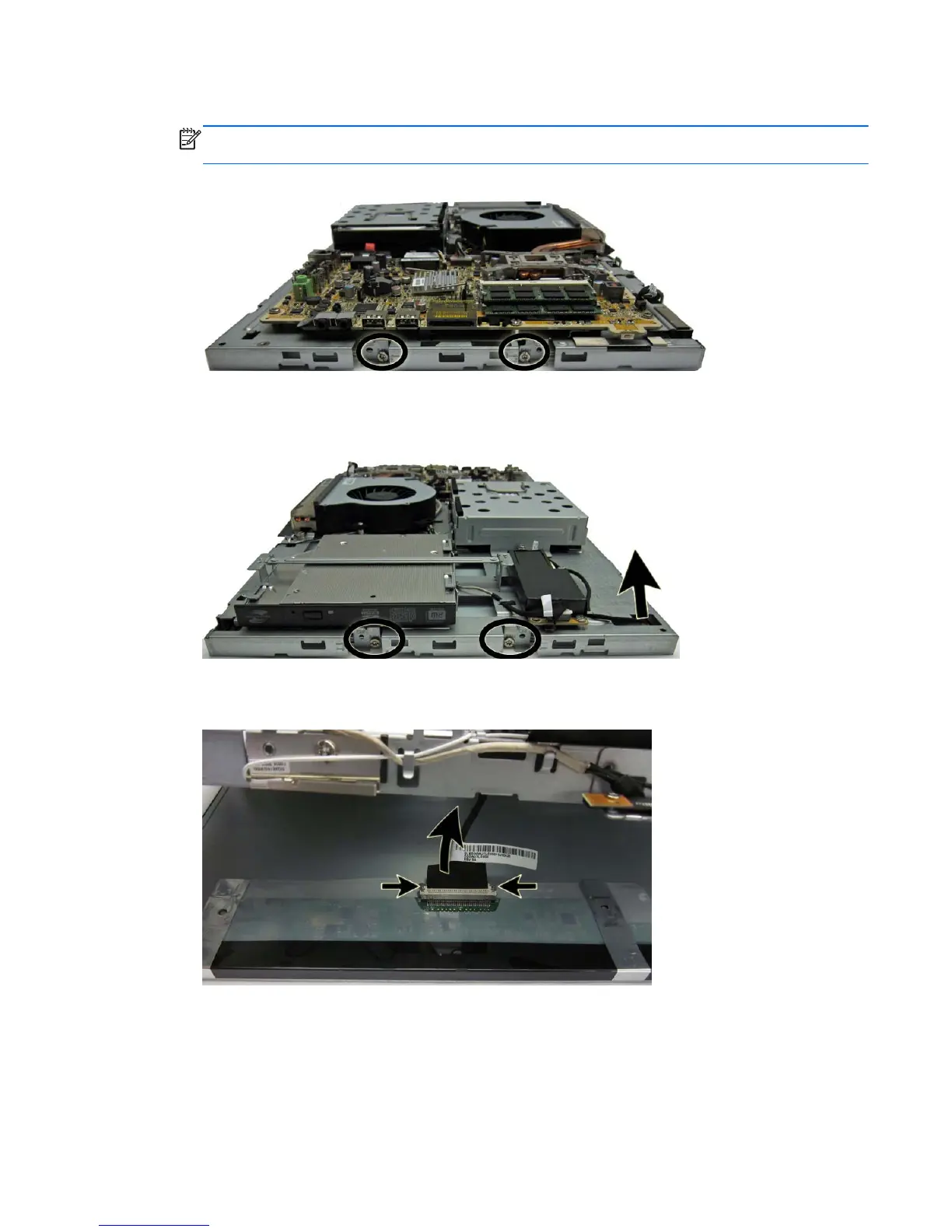

Figure 7-39 Removing the display panel screws
6. Remove the two screws that secure the display panel to the bracket, and then disconnect the
converter board cable from the display panel.
Figure 7-40 Removing the display panel screws and converter cable
7. Disconnect the display cable from the display panel.
Figure 7-41 Disconnecting the display cable
8. Lift the bracket assembly off the display panel.
To install a display panel, reverse the removal procedures.
When replacing a display panel, make sure the converter board jumpers are set properly for the
newly installed panel.
Display Panel 71
