Converter board jumper settings

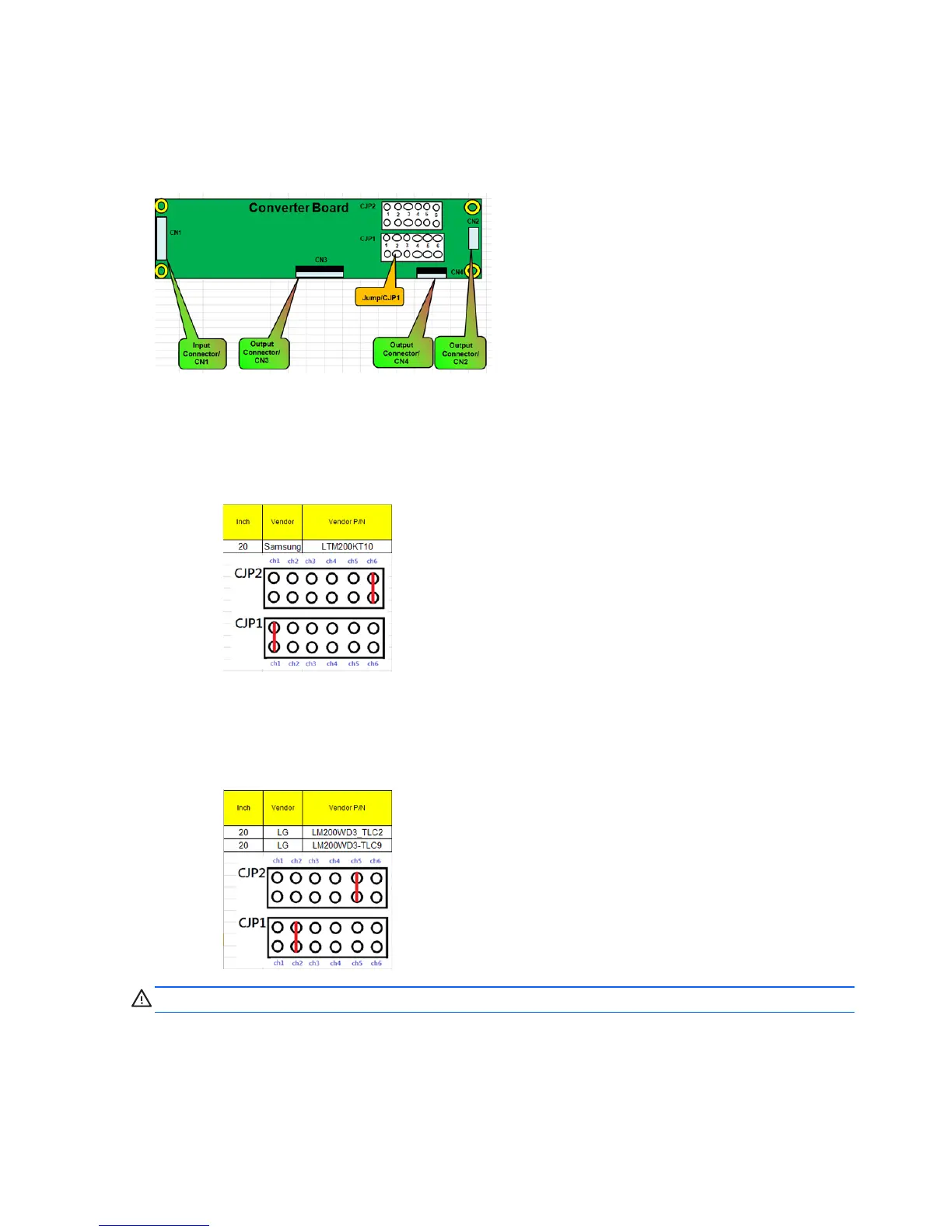

Position the jumper on the converter board based on the display panel installed. Place the jumper on
the header on the converter board as follows:
●
Samsung panel:
◦
CJP2: pin 6
◦
CJP1: pin 1
●
LG panel:
◦
CJP2: pin 5
◦
CJP1: pin 2
CAUTION: Incorrect jumper placement can result in damage to the converter board.
