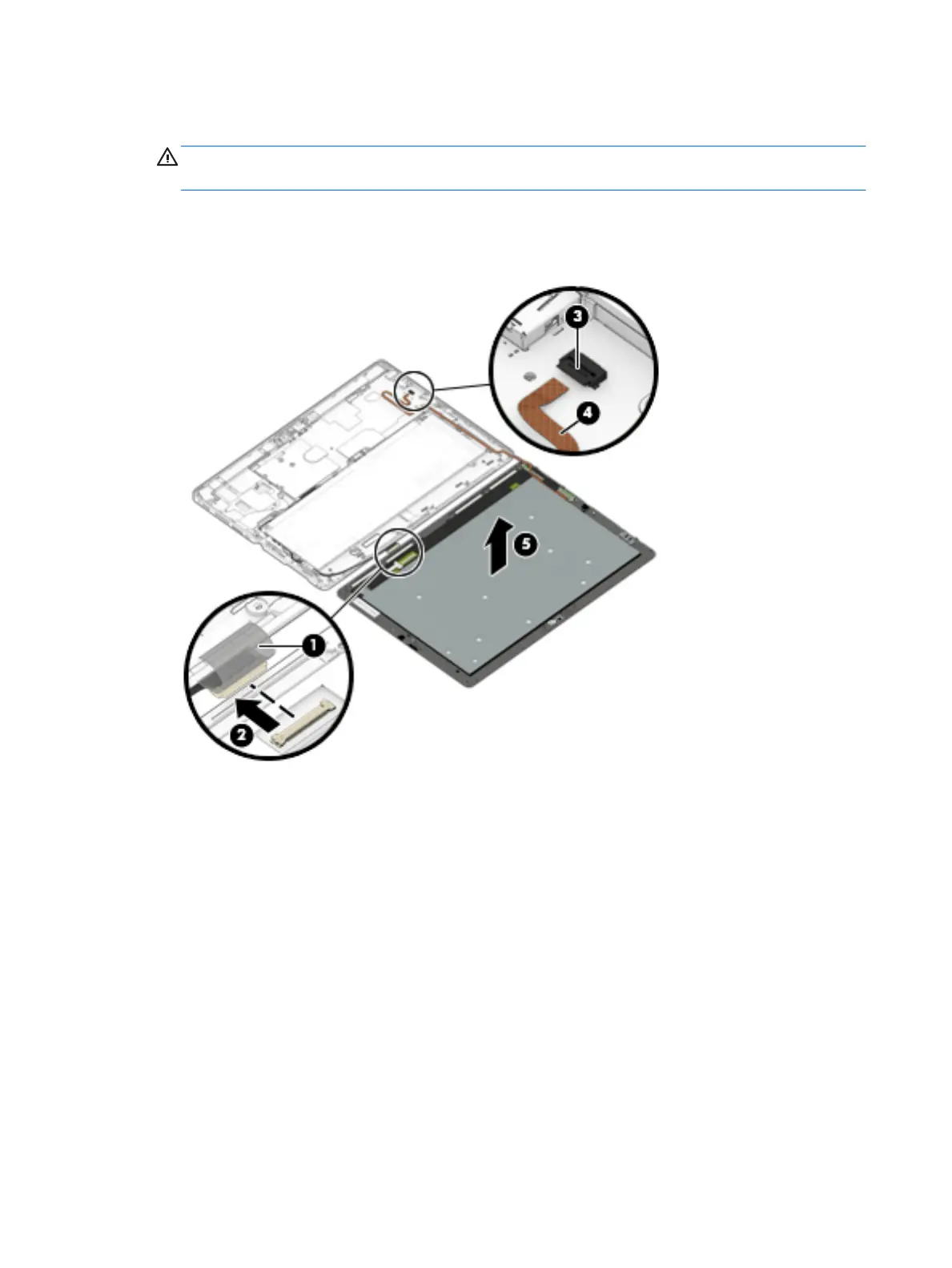

7. Roll the display panel up, lift the tape (1) covering the display cable, and then remove the display cable
(2).
CAUTION: Use care to prevent damaging the ZIF connector and ribbon cable. The cable is fragile.
Release it carefully.
8. Carefully lift the ZIF connector (3), release the touch control cable (4), and then carefully remove the
cable from the middle frame.
9. Lift the display panel (5) to remove it.
Reverse this procedure to replace the display panel.
