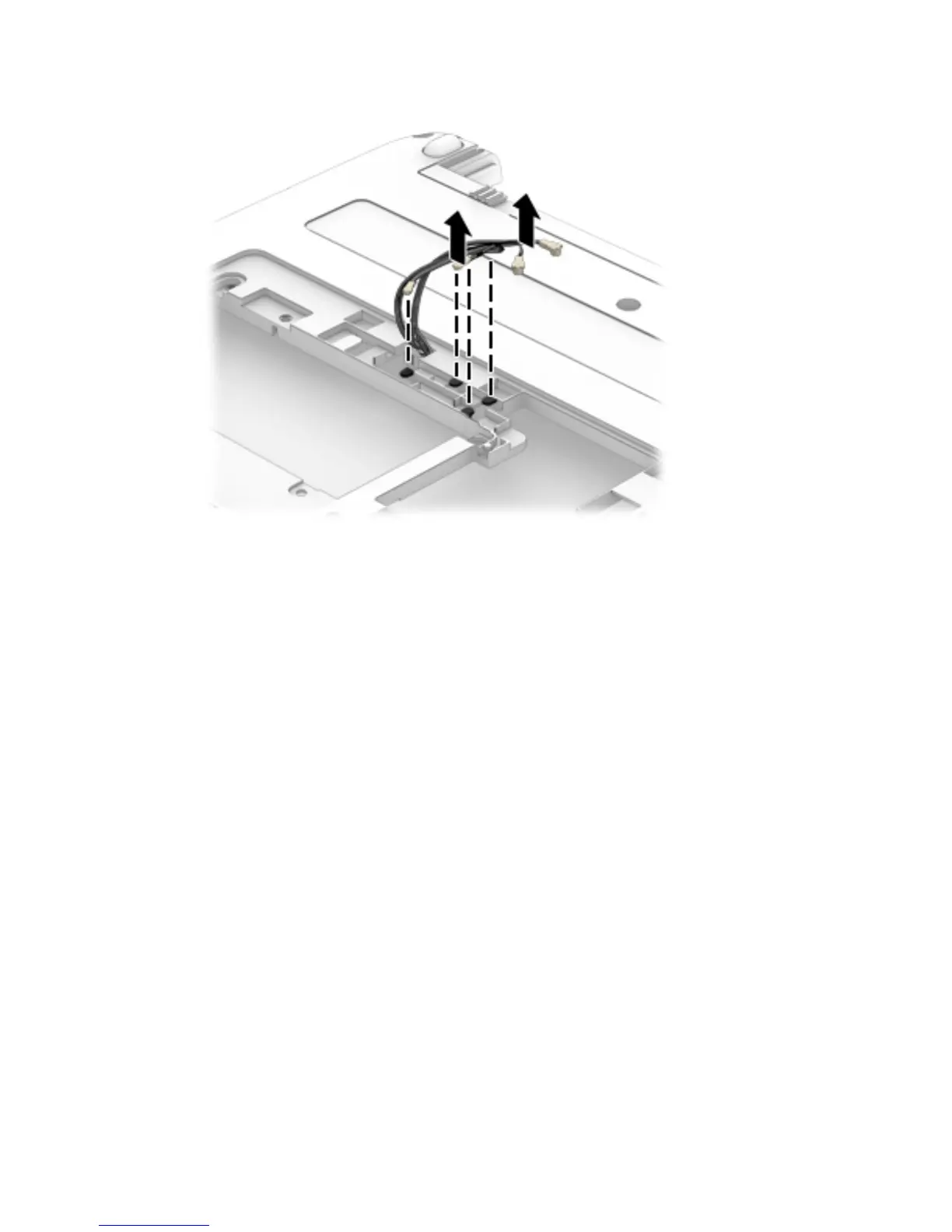

2. Release the antenna cables from the clips on the computer.
3. Position the computer upright and open.
4. Disconnect the display cable from the system board (1).
5. Remove the display cable and antennas (2) from the clips in the base enclosure (3).
6. Remove the 4 Phillips PM2.5×5.0 screws (4) from the display hinges.
Component replacement procedures 71
