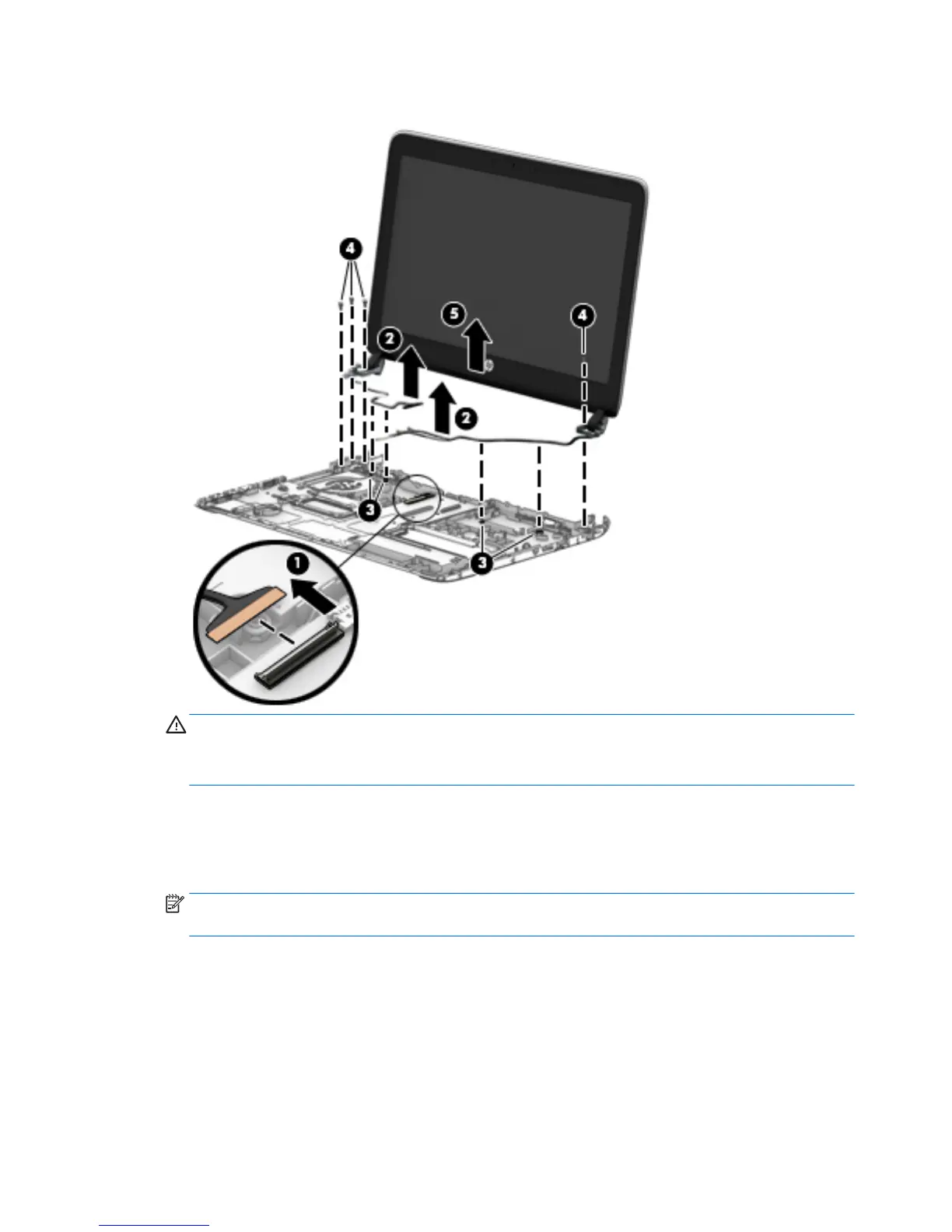

7. Lift the display assembly straight up and remove it (5).
CAUTION: When installing the display assembly, be sure that the wireless antenna cables are routed
and arranged properly.
Failure to properly route the antennas can result in degradation of the computer's wireless performance.
8. If you need to remove the display bezel, remove the 2 mylar screw covers (1) and the 2 Phillips
PM2.5×4.0 screws (2) in the bottom corners of the display bezel.
9. Flex the top (3) of the bezel, the inside edges of the left and right sides (4), and then the bottom (5) of
the bezel until it disengages from the display enclosure.
NOTE: Make sure the hinges are not bent (see hinge position in following image) when you remove the
bezel.
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
