Bottom cover
Table 5-1 Bottom cover description and part number
Description Spare part number
Bottom cover L58712-001
▲ Prepare the computer for disassembly (Preparation for disassembly on page 34).

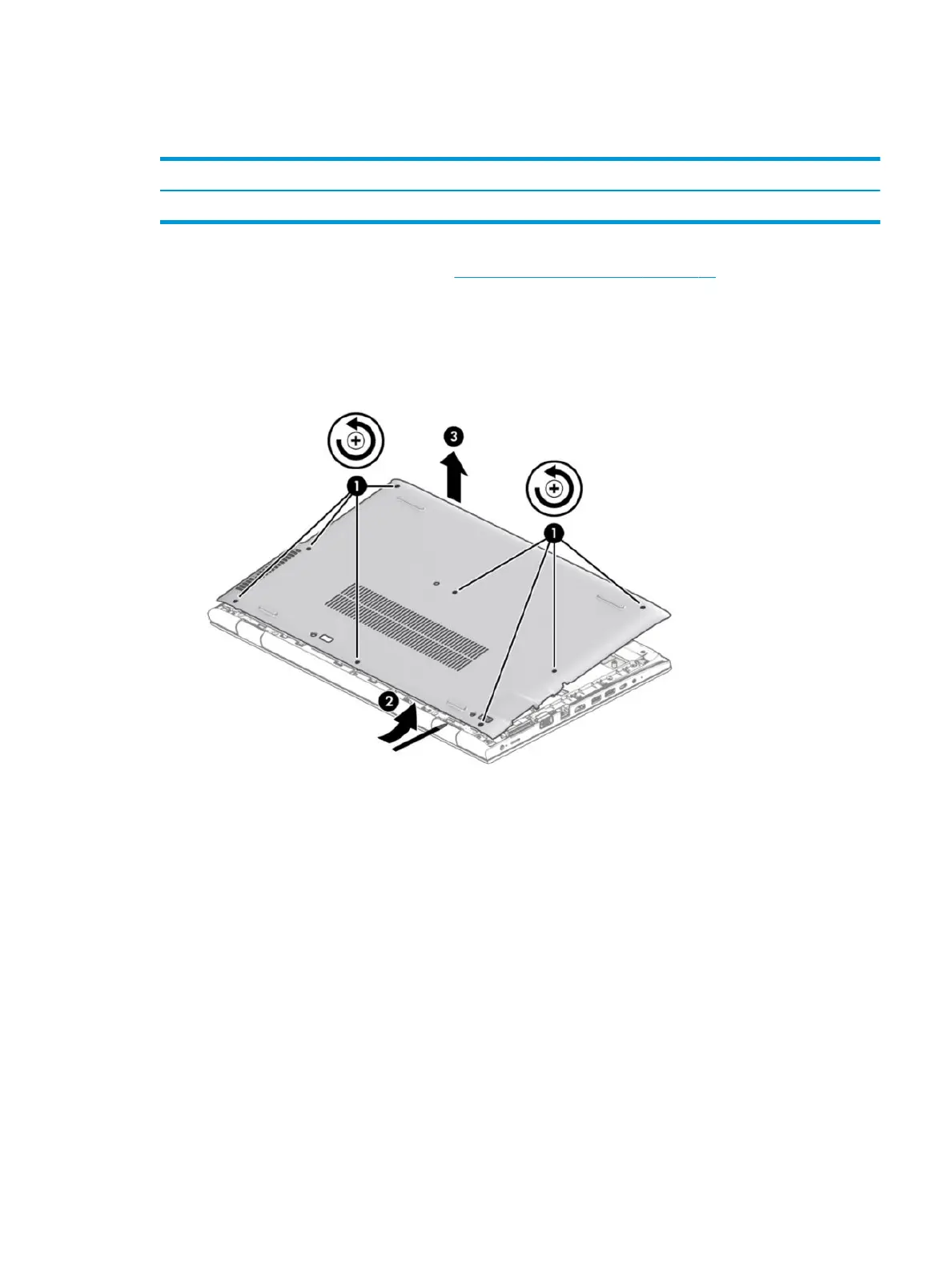

Remove the bottom cover:
1. Loosen the eight Phillips screws (1) that secure the cover to the computer.
2. Using a plastic tool and starting at the rear of the computer, release the cover (2), and then remove it
from the computer (3).
Reverse this procedure to install the bottom cover.
Component replacement procedures 35
