Hard drive
Table 5-5 Hard drive description and part number
Description Spare part number
Hard drive, 1 TB, 7200 rpm L06427-850
Hard drive, 500 GB, 7200 rpm 703267-001
Hard drive, 500 GB, 7200 rpm, FIPS 140-2 820572-001
Hard drive cover (included in Bracket Kit) L59054-001
Before removing the hard drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 35).
3. Remove the battery (see Battery on page 36).
Remove the hard drive:

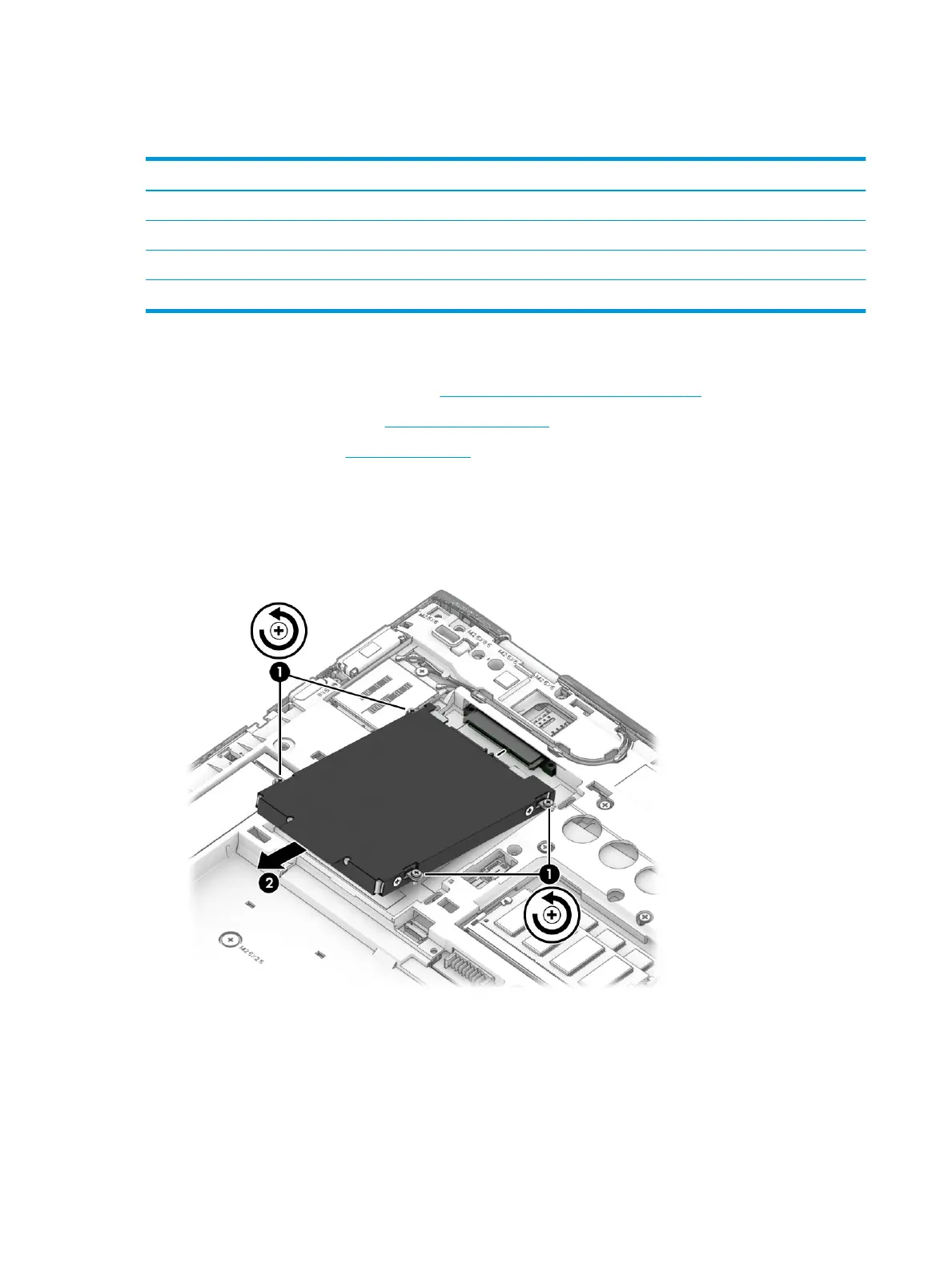

1. Loosen the four captive Phillips screws (1) that secure the drive assembly to the computer.
2. Pull the plastic tab to disconnect the hard drive from the connector and remove the drive from the
computer (2).
40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
