WLAN module
NOTE: On models so equipped, the WLAN module is located under the WWAN module.
Table 6-2 WLAN module descriptions and part numbers
Description Spare part number
Intel Wireless-AC 9560 802.11ac 2 × 2 Wi-Fi + Bluetooth 5 (non-vPro) L22634-001
Intel Wireless-AC 9560 802.11ac 2 × 2 Wi-Fi + Bluetooth 5 (vPro) L28418-001
Intel Wi-Fi 6 AX200 802.11ax 2 × 2 + Bluetooth 5 (non-vPro) L35282-001
Intel Wi-Fi 6 AX200 802.11ax 2 × 2 + Bluetooth 5 (vPro) L35284-001
Before removing the WLAN, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 34).
2. Remove the bottom cover (see Bottom cover on page 35).
3. Remove the battery (see Battery on page 36).
4. Remove the WWAN module and bracket (see WWAN module on page 43).
Remove the WLAN module:

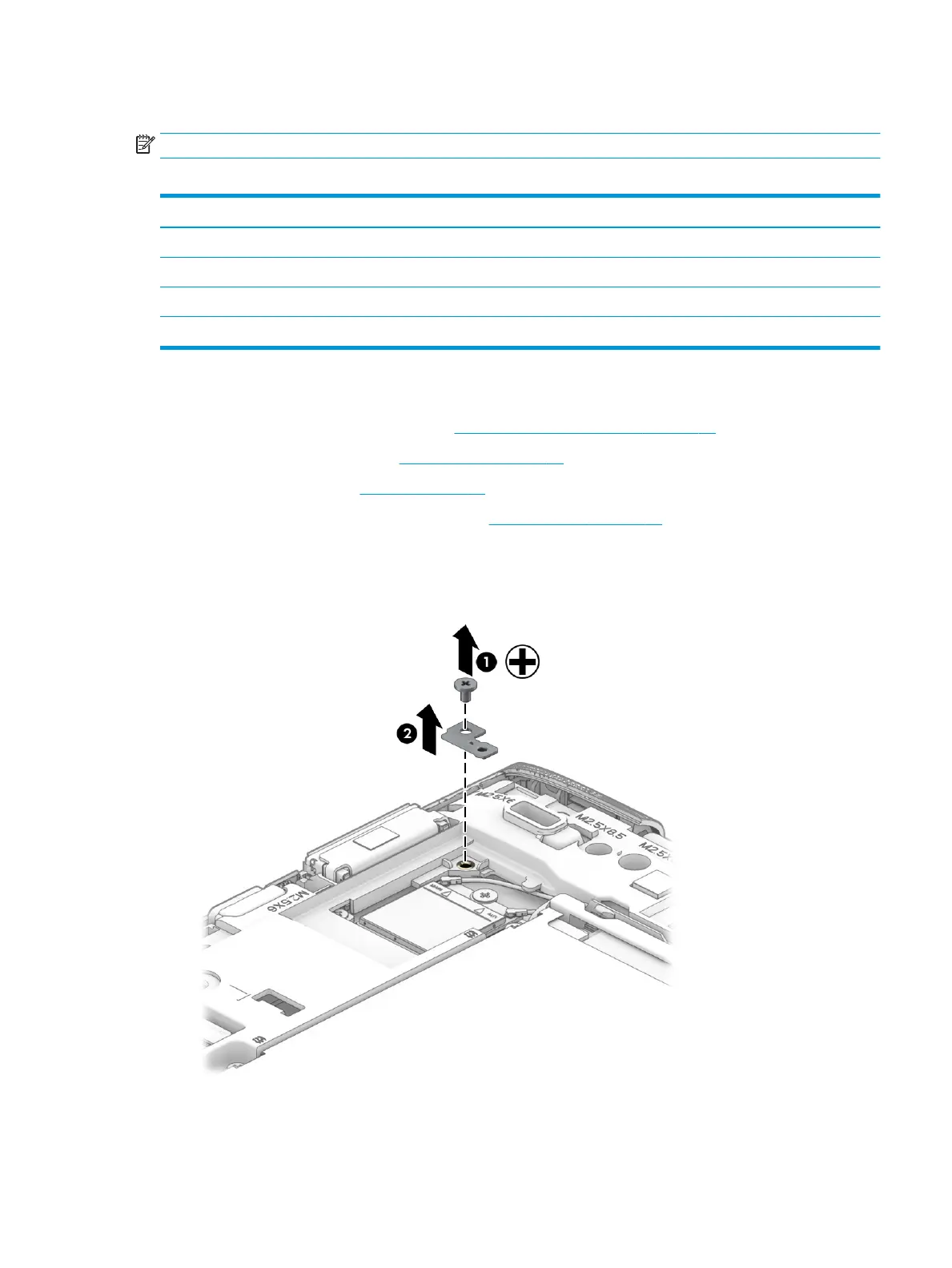

1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the bracket, and then remove the bracket from the
computer (2).
2. Disconnect the two antenna cables from the WLAN module (1).
Component replacement procedures 45
