NOTE: No power supplies ship with Switch 8200zl series base chassis—they must be ordered separately. There
are three types available with different PoE/PoE+ power capacities.
The 8212zl base system (J8715B) as shipped from the factory includes:
•One12-slot8212zlChassis
•OnesystemFanTray(J9094A)
•One8200zlManagementModule(J9092A),withanavailableslotforasecondredundantmanagement
module
•Two8200zlFabricModules(J9093A)
•One8200zlSystemSupportModule(J9095A)
•IntelligentEdgefeaturesandIPBaseRoutingfeaturesstandard
NOTE: The previously available 8212zl base system (J8715A) shipped with Intelligent Edge and Advanced
Routing features standard. Going forward, customers requiring an 8212zl with Advanced Routing features
should order the Switch 8212zl base system (J8715B) and the Switch 8200zl Premium License.
The 8206zl base system (J9475A) as shipped from the factory includes:
•One6-slot8206zlChassis
•OnesystemFanTray(J9476A)
•One8200zlManagementModule(J9092A),withanavailableslotforasecondredundantmanagement
module
•Two8200zlFabricModules(J9093A)
•One8200zlSystemSupportModule(J9095A)
•IntelligentEdgefeaturesandIPBaseRoutingfeaturesstandard
Switch 8212zl Chassis layout
The Switch 8212zl is a rack-mountable, 9U-height chassis. The interface modules are inserted in the front slots,
labeled A through L. Management and fabric modules are labeled MM1/MM2 and FM1/FM2, respectively.

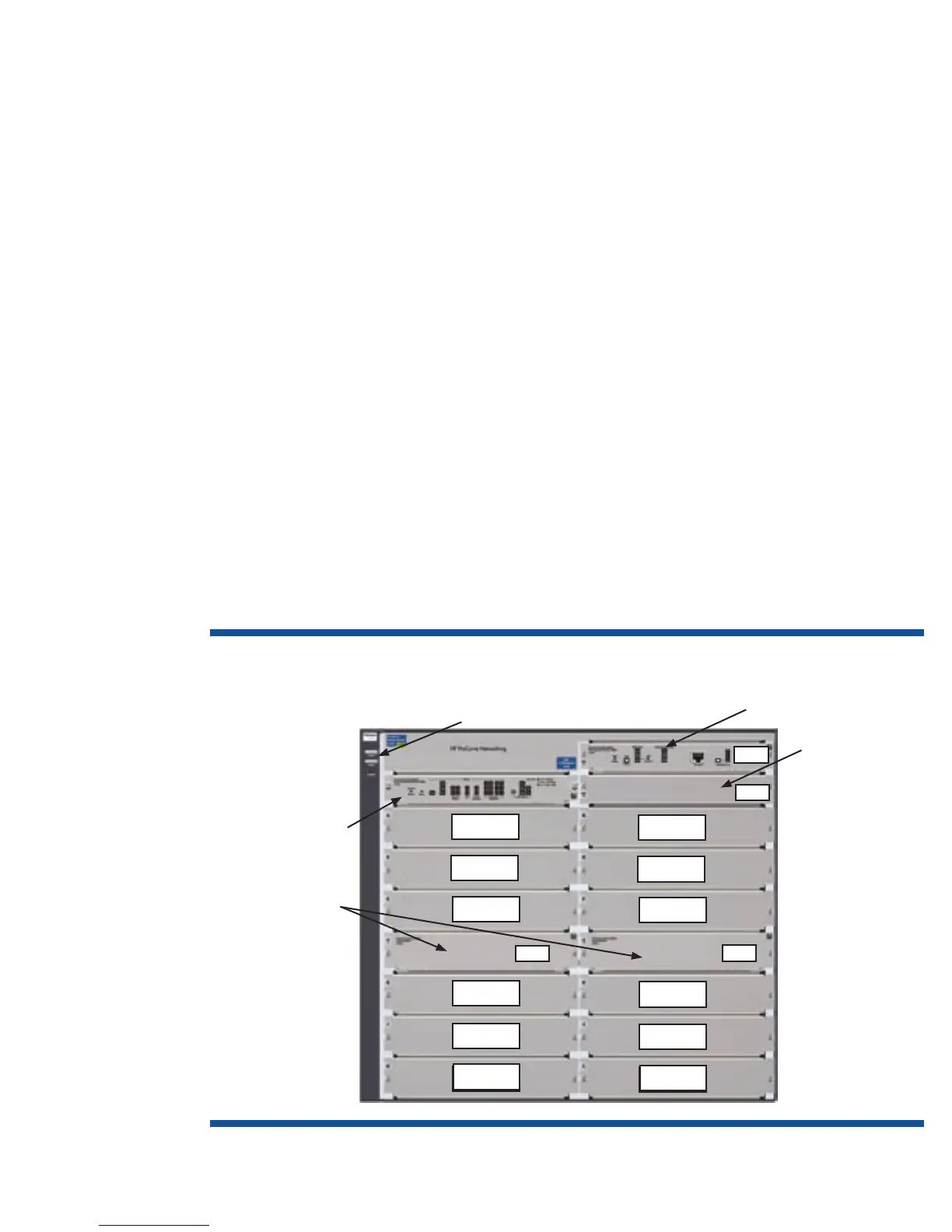

Figure 2. J8715B HP ProCurve Switch 8212zl Base System slot labeling
(MM = Management Module; FM = Fabric Module; all others = Interface Module)
Slot K
Slot L
Slot A
Slot C
Slot E
Slot G
Slot I
Slot B
Slot D
Slot F
Slot H
Slot J
MM1
MM2
FM2
FM1
J9093A 8200zl
Fabric Modules
J9095A System
Support Module
J9095A System Support Module
J9092A 8200zl
Management Module
2nd Management
Module slot
Slot K
Slot L
