Removal and replacement procedures 46

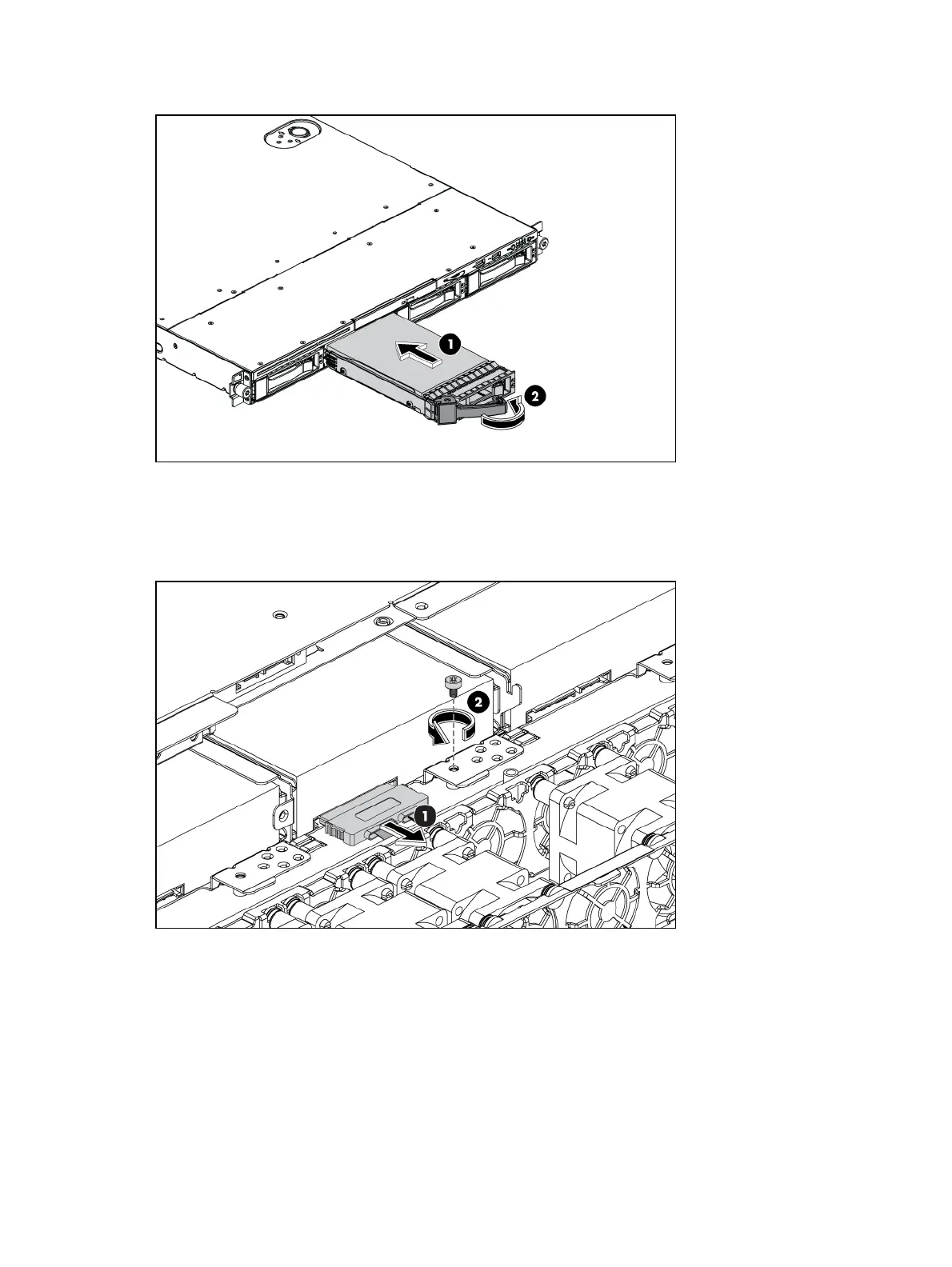

Figure 16 Installing the Hot-plug Hard Drive Assembly
To remove the non-hot-plug hard drive:
1. Disconnect the SATA and power cable.
2. Loosen the screw with the T-10/T-15 wrench provided.
Figure 17
Loosening the Screw
3. Push the hard drive toward the front of the unit
4. Pull the hard drive assembly out of the drive bay.
