Removal and Replacement Procedures
Fully Seated Optical Device/Diskette Drive Assembly

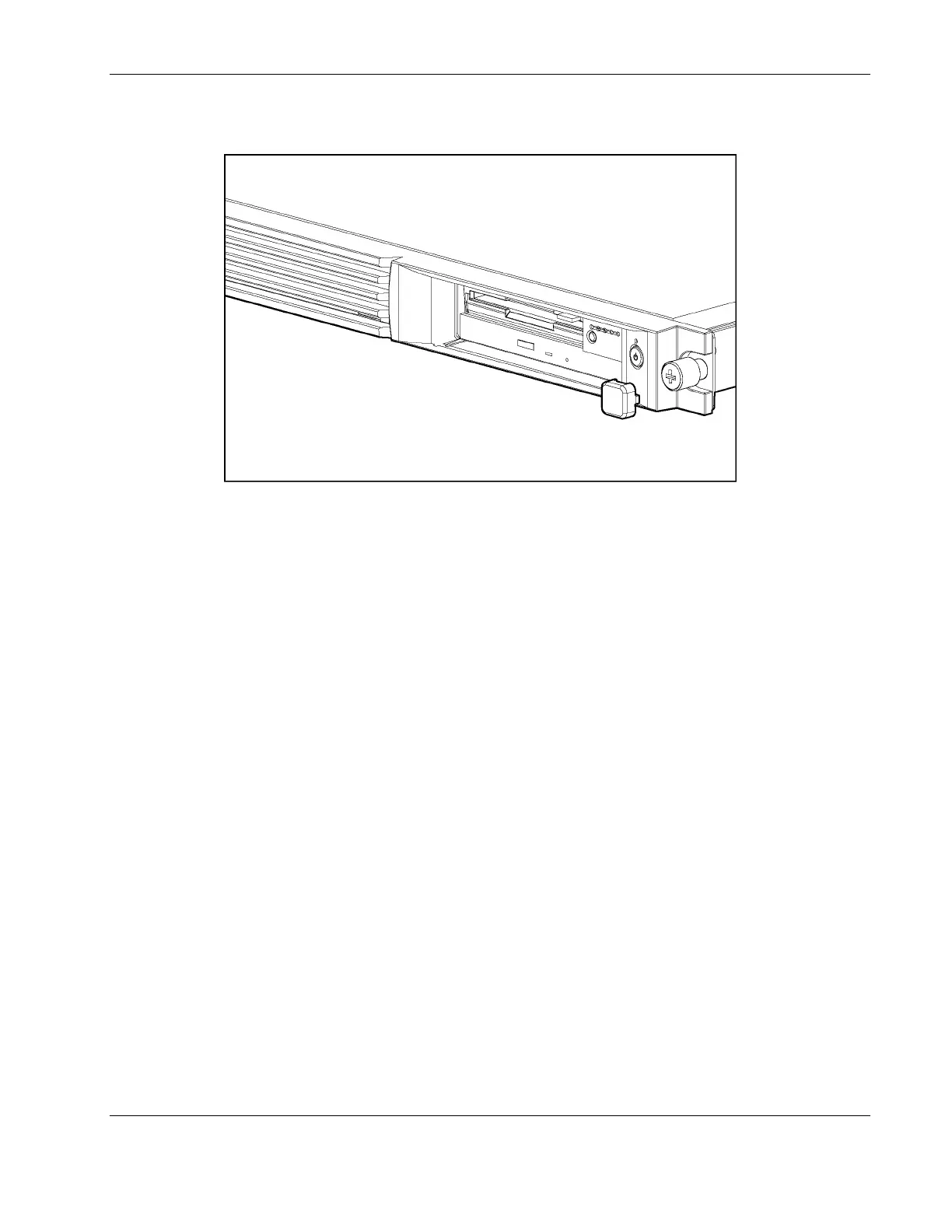

Figure 2-5: Fully seated optical device/diskette drive assembly
(ejector key shown stored in ejector port)
When frequent optical device/diskette drive assembly ejection is anticipated, leave the key in
the ejector port for easy access, as shown in Figure 2-5. Otherwise, store the shipping/ejector
key inside the chassis for future use.
HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide 2-11
