HP ProLiant DL320 Generation 2

Connectors, Switches, and LED Indicators
LED Indicators
This section contains illustrations and descriptions for the following internal and external
server LEDs:
•
•
•
Front panel
Rear panel
System board
Front Panel LED Indicators
Front panel status LEDs allow constant monitoring of basic system functions while the server
is operating.

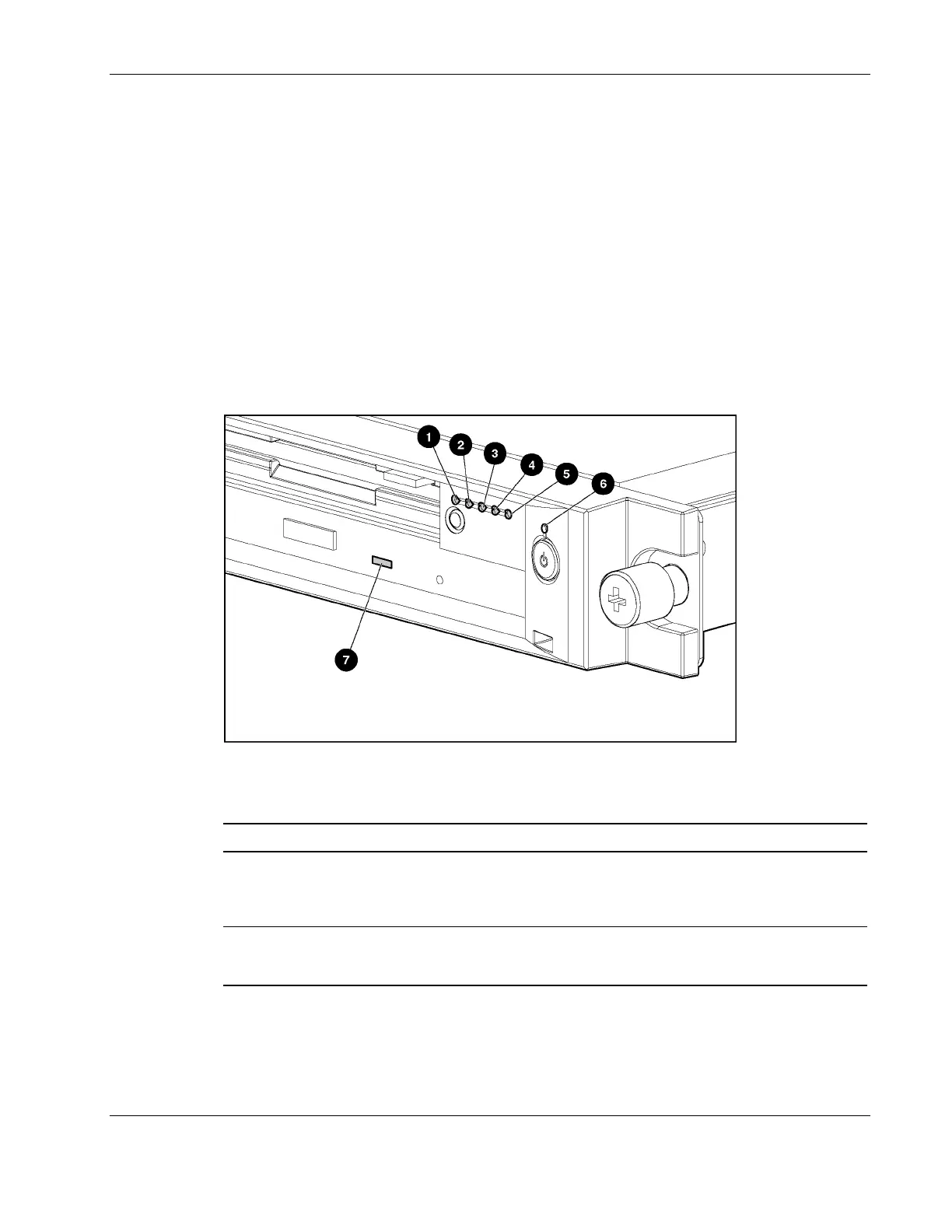

Figure 4-5: Front panel LEDs
Table 4-6: Front Panel LEDs
Item LED Description Status
1 Front unit identification On = Local management
Blinking = Remote
management
Off = Deactivated
2 NIC 2 link/activity On = Link
Off = No link
Blinking = Activity
continued
HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide 4-7
