HP ProLiant DL320 Generation 2

Removal and Replacement Procedures
4. Disconnect the power cables from the hard drives.

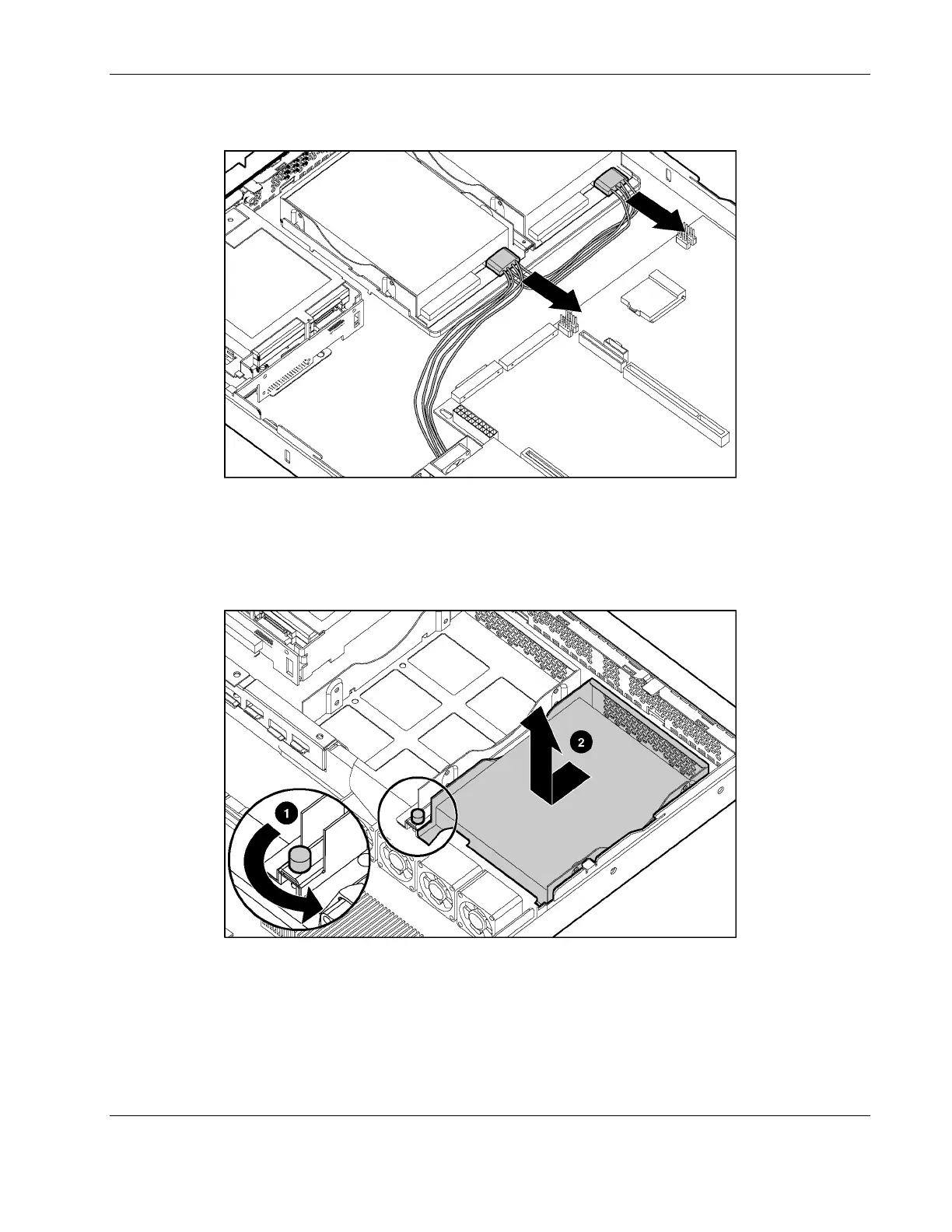

Figure 2-10: Disconnecting the hard drive power cables
5. Remove the hard drive and hard drive tray:
a. Loosen the thumbscrew that secures the hard drive tray to the chassis (1).
b. Slide the tray toward the rear of the server and lift the tray out of the chassis (2).
Figure 2-11: Removing the hard drive tray from the chassis
HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide 2-17
