HP ProLiant DL320 Generation 2

Removal and Replacement Procedures
5. Loosen the center wall thumbscrew (1).
6. Push in and hold the tab next to the center wall fans to unlock the center wall from the
chassis (2).
7. Raise the locking end of the center wall from the chassis (3).

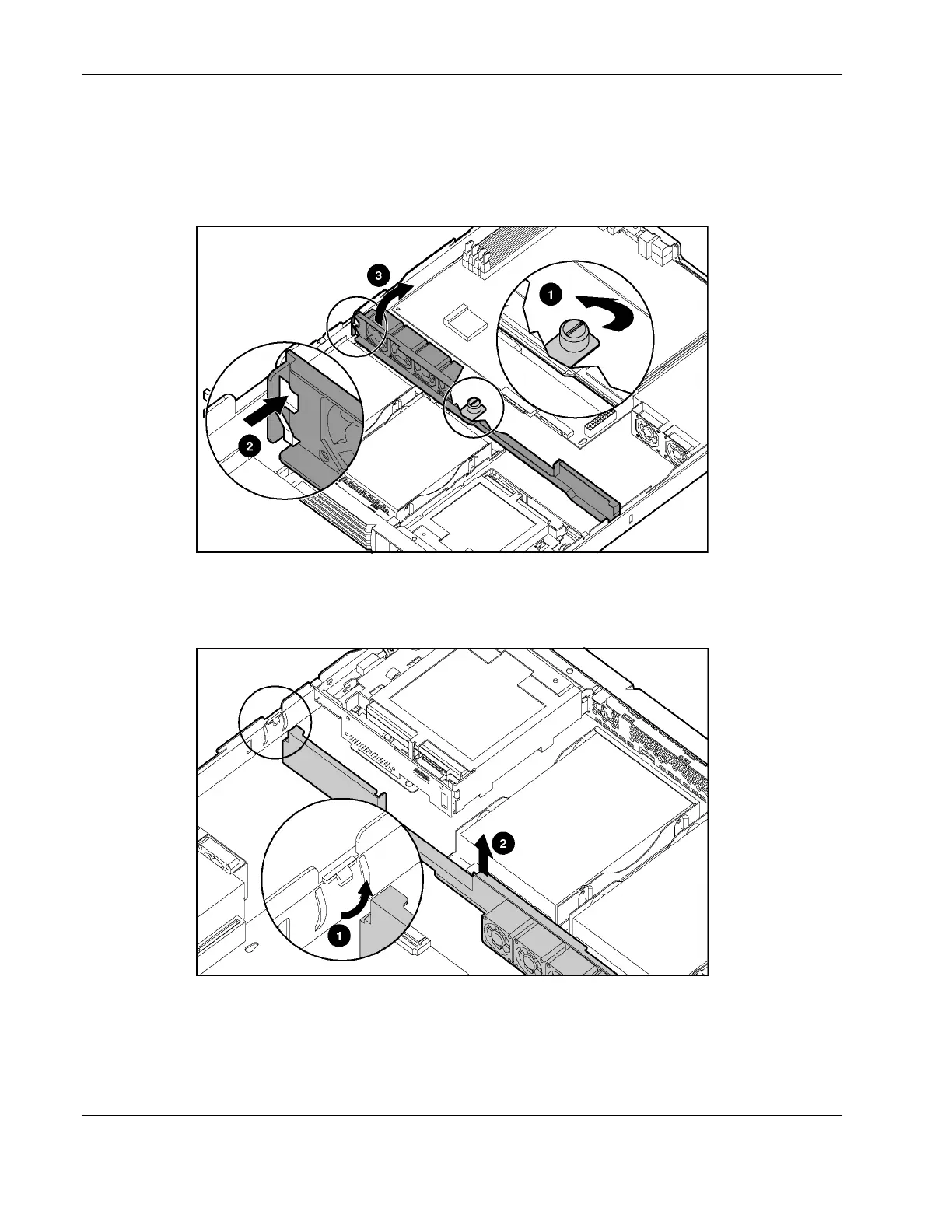

Figure 2-20: Unlocking the center wall
8. Rotate the center wall to clear the center wall alignment tab from the alignment slot (1),
and lift the center wall out of the chassis (2).
Figure 2-21: Clearing the center wall alignment tab
Reverse steps 1 through 8, omitting step 6, to replace the center wall.
