Removal and Replacement Procedures
5. Release the bezel from the chassis by pushing the tabs up from the inside front edge of
the chassis (1).
6. Rotate the bezel away from the top edge of the chassis (2).
7. Lift the bezel off the locating tabs on the bottom edge of the chassis (3).
IMPORTANT: Avoid damaging the light pipes on the user interface board when removing the bezel.

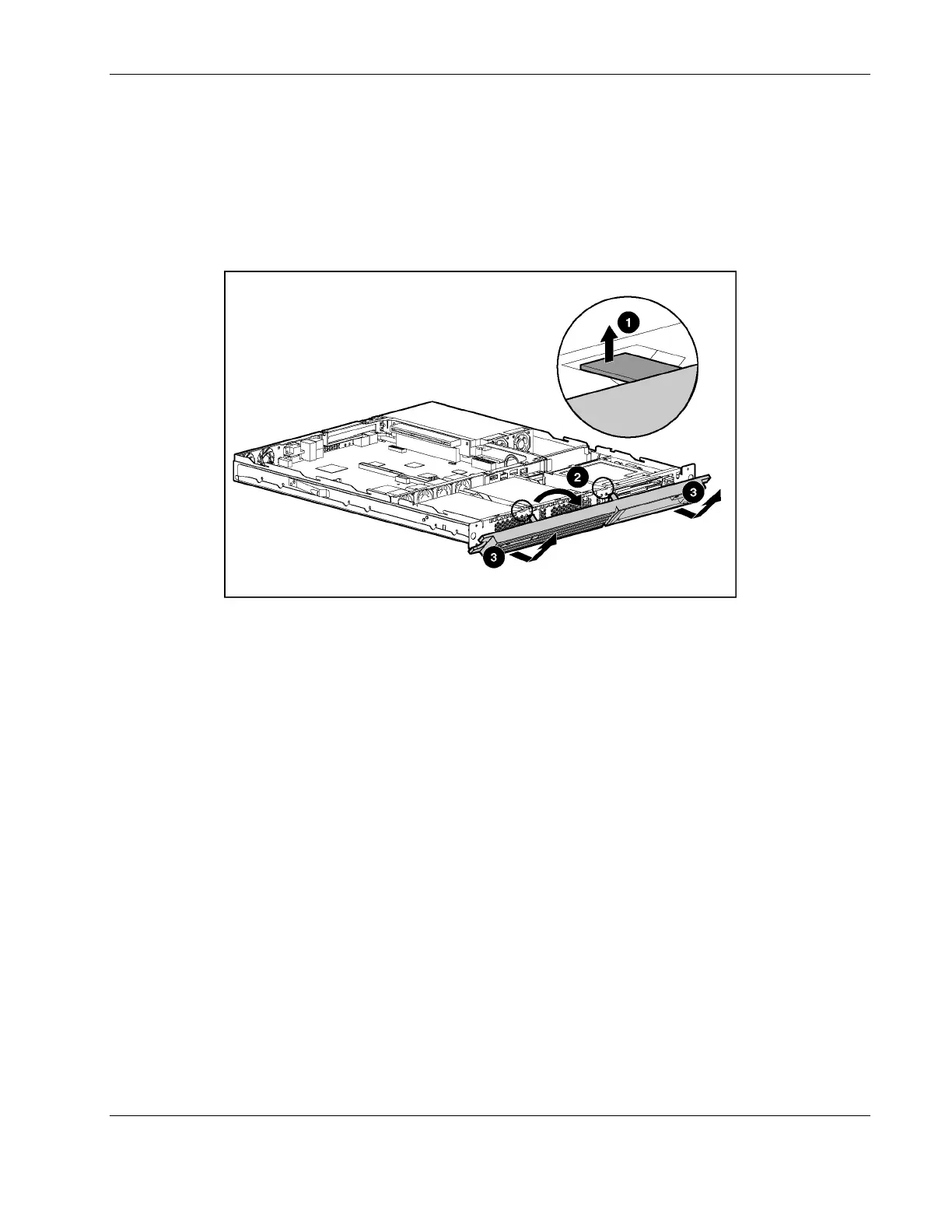

Figure 2-7: Removing the bezel from the chassis
To install the bezel, reverse steps 1 through 7, omitting step 5. When the bottom of the bezel
is hooked securely in place, the bezel top snaps into the chassis tabs.
HP ProLiant DL320 Generation 2 Server Maintenance and Service Guide 2-13
HP CONFIDENTIAL Codename: Moonstar 266 Part Number: 293164-002 Last Saved On: 4/14/03 9:37 AM
